FL21LE

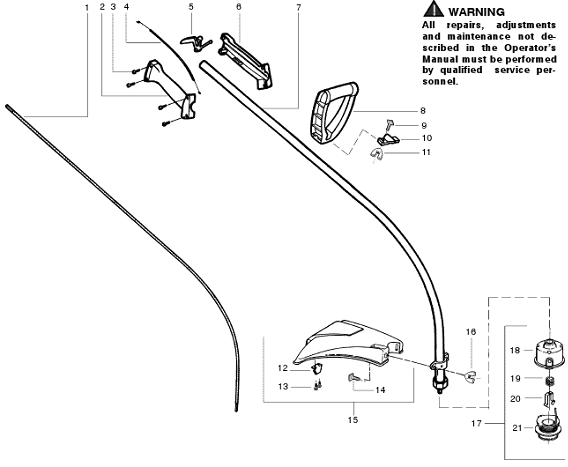

FL21LE Parts
| # | Part # | FL21LE Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530095613 | Shaft---Flex | ||
| 2 | 530038581 | Throttle Hsg. | Right | |
| 3 | 530016349 | Screw - Throttle Hsg. | ||
| 4 | 530071548 | Assy - Throttle Cable | Buy | |
| 5 | 530038682 | Trigger | Buy | |
| 6 | 530038580 | Throttle Hsg. | Left | |
| 7 | 530071425 | Assy---Drive Shaft Hsg. | ||
| 8 | 530038708 | Handle---Assist | ||
| 9 | 530015820 | Bolt---Handle/Shield | ||
| 10 | 530094742 | Clamp---Handle | ||
| 11 | 530016118 | Wingnut - Handle/Shield | ||
| 12 | 530052287 | Line Limiter | ||
| 13 | 530015966 | Screw - Line Limiter | ||
| 14 | 530015820 | Bolt---Handle/Shield | ||
| 15 | 530069686 | Kit---Shield Assy | Incl. 12,13,14,16 | |
| 16 | 530016118 | Wingnut---Handle/Shield | ||
| 17 | 952701676 | Accy---W/E TNG 5 Cutting Head | Incl. 18-21 | Buy |
| 18 | 530095770 | Assy---Hub | ||
| 19 | 530401958 | Spring---Compression | Buy | |
| 20 | 530401957 | Clip---Retainer---Head | ||
| 21 | 952701678 | Accy---W/E Spool w/Line | Buy | |
| 530163366 | Operator Manual | |||
| 530054864 | Decal---Start Instruction | |||
| 530055350 | Decal---Shaft Warning |

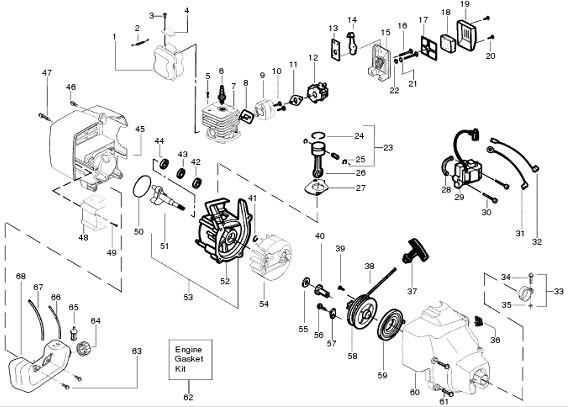

FL21LE Engine Parts
| # | Part # | FL21LE Engine Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530071362 | Kit -- Muffler | Incl. 2,3,4 | |
| 2 | 530042088 | Spring--Muffler | ||
| 3 | 530015241 | Screw--Screen | ||
| 4 | 530071361 | Kit--Spark Arrestor | ||
| 5 | 530015953 | Screw--Cylinder | ||
| 6 | 952030249 | Spark Plug | RCJ 6Y | Buy |
| 7 | 530071359 | Kit -- Cylinder | ||
| 8 | 530071363 | Gasket--Cylind. | ||
| 9 | 530056403 | Adapter--Carb. | ||
| 10 | 530016014 | Screw | ||
| 12 | 530071443 | Repair Kit - Carb Zama C1U-W10 | RB-47 Kit | Buy |
| 12.a | 530071628 | Repair Kit - Carb Zama C1U-W10B | RB-47 Kit (Same as C1U-W10) | Buy |
| 13 | 530038747 | Choke Plate Mounting | ||
| 14 | 530038686 | Shutter--Choke | ||
| 15 | 530052431 | Air Box | Buy | |
| 16 | 530016353 | Screw | ||
| 17 | 530036569 | Plate -- Filter Support | ||
| 18 | 530036575 | Foam--Air Filter | Buy | |
| 19 | 530054414 | Cover--Air Filter | ||
| 20 | 530015892 | Screw | ||
| 21 | 530015852 | Spacer--Choke | ||
| 22 | 530015254 | Washer | ||
| 23 | 530071357 | Kit -- Piston | Incl. 23, 24 & Pin | |
| 24 | 530055120 | Piston Ring | ||
| 25 | 530015162 | Retainer--Piston Pin | ||
| 26 | 530069945 | Assy--Connecting Rod | ||
| 27 | 530071363 | Gasket--Cylinder | ||
| 28 | 530036145 | Spacer--Module | ||
| 29 | 530055160 | Ignition Module | ||
| 30 | 530015954 | Screw | ||
| 31 | 530014662 | Assy--Ground Wire | ||
| 32 | 530014663 | Assy--Leadwire | ||
| 33 | 530056365 | Assy--Nose Cone Clamp | Incls. 34&35 | |
| 34 | 530016381 | Screw--Nose Cone | ||
| 35 | 530016382 | Nut--Nose Cone | ||
| 36 | 530071356 | Kit--On/Off Switch | Buy | |
| 37 | 530027569 | Handle--Starter | ||
| 38 | 530069232 | Kit -- Rope | Buy | |
| 39 | 530016080 | Screw | ||
| 40 | 530038604 | Coupling--Drive | ||
| 41 | 530015941 | Retain. Ring--C'shaft | ||
| 42 | 530055728 | Outer Bearing | ||
| 43 | 530071615 | C'case Seal | ||
| 44 | 530032125 | Inner Bearing | ||
| 45 | 530056710 | Shroud--Rear | ||
| 46 | 530015934 | Screw | ||
| 47 | 530015810 | Screw | ||
| 48 | 530055351 | Shield--Heat | ||
| 49 | 530015805 | Screw | ||
| 50 | 530071363 | O--Ring--C'case/Shrd | ||
| 51 | 530054753 | Assy--Crankshaft | ||
| 52 | 530012491 | Assy--Crankcase | Incl. 42-44 | |
| 53 | 530071360 | Assy--C'case & C'shaft | Incl. 41,51,52 | |
| 54 | 530069886 | Assy--Flywheel | ||
| 55 | 530015828 | Washer--Flat | ||
| 56 | 530015775 | Screw | ||
| 57 | 530027523 | Retainer--Can | ||
| 58 | 530069400 | Kit--Starter Pulley | Incl. 39 | Buy |
| 59 | 530042085 | Spring--Starter | ||
| 60 | 530056706 | Assy.--Fan Hsg | ||
| 61 | 530015810 | Screw | ||
| 62 | 530071363 | Kit--Engine Gasket | Incl. 8,11,27,50 | |
| 63 | 530016379 | Screw | ||
| 64 | 530014347 | Assy--Fuel Cap | Buy | |
| 65 | 530095646 | Assy--Fuel Pickup | Buy | |
| 66 | 530069247 | Kit--Fuel Line | Small | Buy |
| 67 | 530069216 | Kit--Fuel Line | Large | Buy |
| 68 | 530049379 | Assy--Fuel Tank | Incl. filter, lines & fuel cap | |
| 530035560 | Carburetor Adjustment Tool | Not Shown | Buy | |
| CP7826 | Compression Tester | Not Shown | Buy |
