FL23

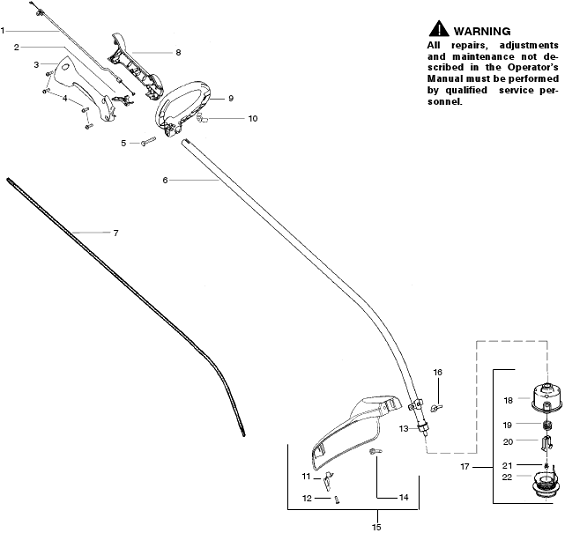

FL23 Parts
| # | Part # | FL23 Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530057991 | Assy--- Throttle Cable | Buy | |
| 2 | 530058000 | Trigger | Buy | |
| 3 | 530057582 | Throttle Hsg. | Right | |
| 4 | 530015880 | Screw--- Throttle Hsg. | ||
| 5 | 530015821 | Bolt | ||
| 6 | 530071874 | Assy--- Drive Shaft Hsg. | ||
| 7 | 530096275 | Shaft--- Flex | ||
| 8 | 530057581 | Throttle Hsg. | Left | |
| 9 | 530058580 | Assy--- Handle | Incl. 5,10 | |
| 10 | 530016152 | Wingnut | ||
| 11 | 545081862 | Kit --- Line Limiter | Incl. 12 | |
| 12 | 530015966 | Screw--- Line Limiter | ||
| 13 | 530095563 | Dust Cup | ||
| 14 | 530015820 | Bolt | ||
| 15 | 530071772 | Kit--- Shield Assy | Incl. 11,12,14,16 | |
| 16 | 530016152 | Wingnut | ||
| 17 | 952701666 | Accy--- TNG IV Cutting Head | Incl. 18,19,20,21,22 | Buy |
| 18 | 530095769 | Assy--- Hub | ||
| 19 | 530401464 | Spring --- Compression | ||
| 20 | 530401466 | Clip --- Retainer--- Head | ||
| 21 | 530401467 | Screw | ||
| 22 | 952711527 | Accy--- Spool w/Line | Buy | |
| 545154699 | Operator Manual | Not Shown | ||
| 530055350 | Decal--- Shaft Warning | Not Shown |

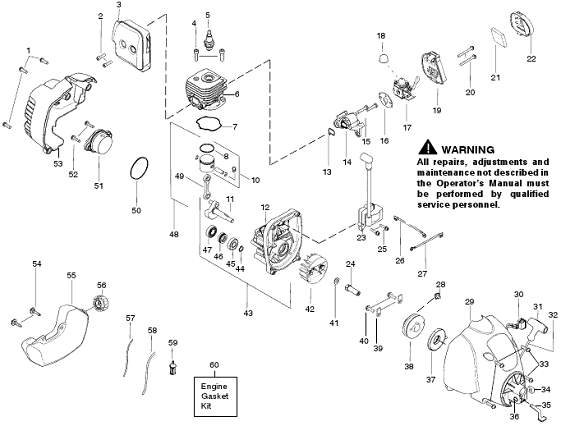

FL23 Engine Parts
| # | Part # | FL23 Engine Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530015880 | Screw | ||
| 2 | 530058982 | Bolt-Muffler | ||
| 3 | 530057863 | Assy-Muffler/Shield | including 2 | |
| 4 | 530015953 | Screw-Cylinder | ||
| 5 | 952030249 | Spark Plug | RCJ 6Y | Buy |
| 6 | 530012541 | Cylinder | ||
| 7 | 530071750 | Seal-Cylinder | kit | Buy |
| 8 | 530055120 | Piston Ring | ||
| 9 | 530015162 | Retainer-Piston Pin | ||
| 10 | 530071357 | Kit - Piston | Including 8, 9 | |
| 11 | 530057829 | Assy-Crankshaft | ||
| 12 | 530012582 | Assy-Crankcase | Including 44-46 | |
| 13 | 530071750 | Seal-Cyl/Carb. | kit | Buy |
| 14 | 530057547 | Adapter-Carb. | ||
| 15 | 530016441 | Screw | ||
| 17 | 530071752 | Repair Kit-Carb. Zama C1U-W18 | RB-115 Kit | Buy |
| 17.a | 545081808 | Repair Kit-Carb. Walbro WT-669 | K20-WAT Kit | Buy |
| 18 | 530058709 | Bulb - Purge | Buy | |
| 19 | 530057585 | Air Box | ||
| 20 | 530016429 | Screw | ||
| 21 | 530057781 | Foam--Air Filter | Buy | |
| 22 | 530057584 | Cover--Air Box | Buy | |
| 23 | 545024901 | Ignition Module | ||
| 24 | 530038604 | Coupling--Drive | ||
| 25 | 530016357 | Screw | ||
| 26 | 530014663 | Assy--Leadwire | ||
| 27 | 530014662 | Assy--Ground Wire | ||
| 28 | 530016392 | Screw | ||
| 29 | 530058600 | Assy.--Fan Hsg | Buy | |
| 30 | 530081869 | Kit--Switch | ||
| 31 | 530027569 | Handle--Starter | ||
| 32 | 530071767 | Kit - Rope | ||
| 33 | 530016386 | Screw | ||
| 34 | 530016124 | Nut | ||
| 35 | 530057588 | Clip--Spring | ||
| 36 | 530016430 | Screw | ||
| 37 | 530042085 | Spring--Starter | ||
| 38 | 530071786 | Kit--Pulley--Starter | ||
| 39 | 530027523 | Retainer--Pulley | ||
| 40 | 530015775 | Screw | ||
| 41 | 530015828 | Washer--Flat | ||
| 42 | 545005101 | Assy--Flywheel | Buy | |
| 43 | 530071768 | Assy--C'case & C'shaft | Incl. 11,12,44 | |
| 44 | 530015941 | Retain. Ring--C'shaft | ||
| 45 | 530055728 | Outer Bearing | ||
| 46 | 530019264 | Seal--C'case | ||
| 47 | 530032125 | Inner Bearing | ||
| 48 | 530071785 | Kit--piston | Including 10,49 | |
| 49 | 530069945 | Assy--Connecting Rod | ||
| 50 | 530071750 | O--Ring--C'case | kit | Buy |
| 51 | 530057954 | Assy--Plug | Incl.50 | |
| 52 | 530016386 | Screw | ||
| 53 | 545011004 | Shroud--Rear | ||
| 54 | 530016445 | Retainer--Tank | ||
| 55 | 545104102 | Assy--Fuel Tank | Incl.filter, lines & fuel cap | |
| 56 | 530014347 | Assy--Fuel Cap | Buy | |
| 57 | 530069247 | Kit--Fuel Line | Small | Buy |
| 58 | 530069216 | Kit--Fuel Line | Large | Buy |
| 59 | 530095646 | Assy--Fuel Pickup | Buy | |
| 60 | 530071750 | Kit--Engine Gasket | Incl. 7,13,16,50 | Buy |
| 530057827 | Choke Lever - Zama | Not Shown | ||
| 530058662 | Choke Lever - Walbro | Not Shown | ||
| 530035560 | Carburetor Adjustment Tool | Not Shown | Buy | |
| CP7826 | Compression Tester | Not Shown | Buy |
