FL25LE

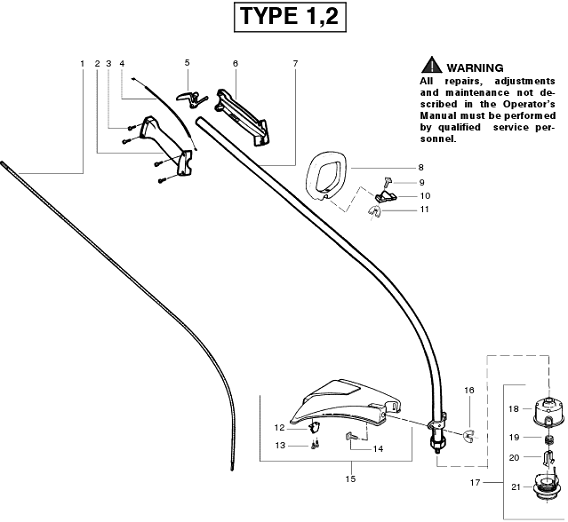

FL25LE Parts
| # | Part # | FL25LE Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530095803 | Shaft---Flex | ||
| 2 | 530038581 | Throttle Hsg. | Right | |
| 3 | 530016349 | Screw---Throttle Hsg. | ||
| 4 | 530071548 | Assy---Throttle Cable | Buy | |
| 5 | 530038682 | Trigger | Buy | |
| 6 | 530038580 | Throttle Hsg. | Left | |
| 7 | 530071315 | Assy---Drive Shaft Hsg. | ||
| 8 | 530038584 | Handle---Assist | ||
| 9 | 530015820 | Bolt---Handle/Shield | ||
| 10 | 530038599 | Clamp---Handle | ||
| 11 | 530016118 | Wingnut---Handle/Shield | ||
| 12 | 530052286 | Line Limiter | ||
| 13 | 530015886 | Screw---Line Limiter | ||
| 14 | 530015820 | Bolt---Handle/Shield | ||
| 15 | 530069759 | Kit---Shield Assy | Incl. 12,13,14,16 | |
| 16 | 530016118 | Wingnut---Handle/Shield | ||
| 17 | 952711593 | Accy---W/E TNG 5 Cutting Head | Incl. 18-21 | Buy |
| 18 | 530095770 | Assy---Hub | ||
| 19 | 530401958 | Spring---Compression | Buy | |
| 20 | 530401957 | Clip---Retainer---Head | ||
| 21 | 952711594 | Accy---W/E Spool w/Line | Buy | |
| 530163513 | Operator Manual | Not Shown | ||
| 530054864 | Decal---Start Inst. | Not Shown | ||
| 530055350 | Decal---Shaft Warning | Not Shown |

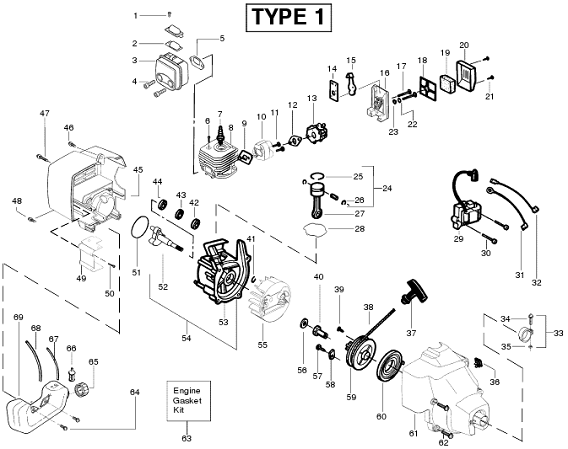

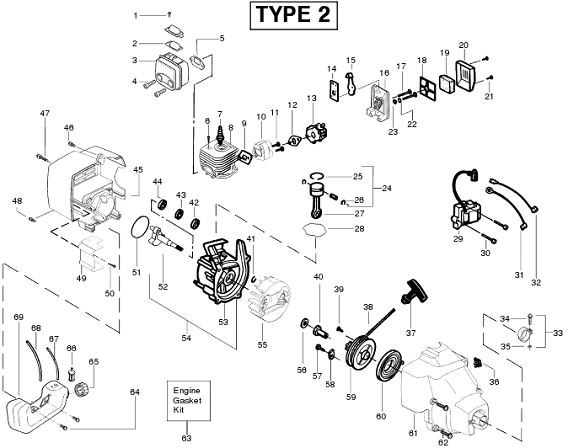

FL25LE Engine Parts
| # | Part # | FL25LE Engine Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530015241 | Screw-Screen | ||
| 2 | 530071544 | Kit--Spark Arrestor | ||
| 3 | 530071672 | Kit--Muffler | Incl.1,2,4,5 | |
| 4 | 530016338 | Bolt--Muffler | ||
| 5 | 530071363 | Gasket--Muffler | kit | |
| 6 | 530015953 | Screw-Cylinder | ||
| 7 | 952030249 | Spark Plug | RCJ 6Y | Buy |
| 8 | 530071668 | Kit -- Cylinder | ||
| 9 | 530071363 | Gasket--Cylind. | ||
| 10 | 530056403 | Adapter--Carb. | ||
| 11 | 530016309 | Screw | ||
| 13 | 530071628 | Repair Kit -- Carb. Zama C1U-W10B | RB-47 Kit | Buy |
| 14 | 530038747 | Choke Plate Mounting | ||
| 15 | 530038686 | Shutter--Choke | ||
| 16 | 530052431 | Air Box | Buy | |
| 17 | 530016353 | Screw | ||
| 18 | 530036569 | Plate -- Filter Support | ||
| 19 | 530036575 | Foam--Air Filter | Buy | |
| 20 | 530054414 | Cover--Air Filter | ||
| 21 | 530015892 | Screw | ||
| 22 | 530015852 | Spacer--Choke | ||
| 23 | 530015254 | Washer | ||
| 24 | 530071357 | Kit -- Piston | Incl. 25,26 & Pin | |
| 25 | 530055120 | Piston Ring | ||
| 26 | 530015162 | Retainer--Piston Pin | ||
| 27 | 530069945 | Assy--Connecting Rod | ||
| 28 | 530071363 | Seal-Cylinder | kit | |
| 29 | 530055160 | Ignition Module | ||
| 30 | 530016357 | Screw | ||
| 31 | 530014662 | Assy--Ground Wire | ||
| 32 | 530014663 | Assy--Leadwire | ||
| 33 | 530056365 | Assy--Nose Cone Clamp | Incl. 34&35 | |
| 34 | 530016381 | Screw--Nose Cone | ||
| 35 | 530016382 | Nut--Nose Cone | ||
| 36 | 530071356 | Kit--Switch | Buy | |
| 37 | 530027569 | Starter Handle | ||
| 38 | 530069232 | Kit -- Rope | Buy | |
| 39 | 530016080 | Screw | ||
| 40 | 530038604 | Coupling--Drive | ||
| 41 | 530015941 | Retain. Ring--C'shaft | ||
| 42 | 530055728 | Outer Bearing | ||
| 43 | 530071615 | C'case Seal | ||
| 44 | 530032125 | Inner Bearing | ||
| 45 | 530056710 | Shround-Rear | ||
| 46 | 530015934 | Screw | ||
| 47 | 530015810 | Screw | ||
| 48 | 530015880 | Screw | ||
| 49 | 530055351 | Shield-Heat | ||
| 50 | 530015805 | Screw | ||
| 51 | 530071363 | O--Ring--C'case | kit | |
| 52 | 530054753 | Assy--Crankshaft | ||
| 53 | 530012510 | Assy--Crankcase | Incl. 42-44 | |
| 54 | 530071669 | Assy--C'case & C'shaft | Incl. 41,52,53 | |
| 55 | 530069886 | Assy--Flywheel | ||
| 56 | 530015828 | Washer--Flat | ||
| 57 | 530015775 | Screw | ||
| 58 | 530027523 | Retainer--Can | ||
| 59 | 530069400 | Kit--Starter Pulley | Incl. 39 | Buy |
| 60 | 530042085 | Starter Spring | ||
| 61 | 530056706 | Assy--Fan Hag | ||
| 62 | 530015810 | Screw | ||
| 63 | 530071363 | Kit--Engine Gasket | Incl. 5,9,12,28,51 | |
| 64 | 530016379 | Screw | ||
| 65 | 530014347 | Assy--Fuel Cap | Buy | |
| 66 | 530095646 | Assy--Fuel Pickup | Buy | |
| 67 | 530069247 | Kit--Fuel Line | Small | Buy |
| 68 | 530069216 | Kit--Fuel Line | Large | Buy |
| 69 | 530049296 | Assy--Fuel Tank | Incl. cap,fuel lines, filter | |
| 530035560 | Carburetor Adjustment Tool | Not shown | Buy | |
| CP7826 | Compression Tester | Not shown | Buy |
