RTE115C

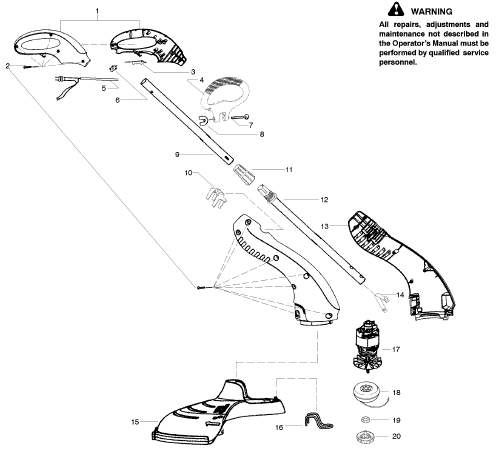

RTE115C Parts
| # | Part # | RTE115C Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 545077902 | Handle Set | ||
| 2 | 530016120 | Screw | 11 pcs. | |
| 3 | 530403818 | Trigger | ||
| 4 | 530403996 | Assy-Assist Handle | Incl 7,8 | |
| 5 | 545046201 | Assy-Wiring Harness | Incl. 6 | |
| 6 | 530402879 | Switch | ||
| 7 | 530403886 | Bolt-Carriage | ||
| 8 | 530016152 | Wingnut | ||
| 9 | 545088401 | Assy-Upper Tube | ||
| 10 | 530403820 | Button-Push | ||
| 11 | 545045101 | Nut-Collett | ||
| 12 | 545088301 | Assy-Lower Tube | ||
| 13 | 545079301 | Housing Set | ||
| 14 | 530403835 | Button-Snap | ||
| 15 | 530403914 | Shield Ass'y. | Incl. line limiter | |
| 16 | 530403824 | Guide - Edging | ||
| 17 | 530403917 | Assy.-Motor/Impeller | ||
| 18 | 952711602 | Accy-Smart Adv. Spool | Buy | |
| 19 | 530403949 | Guide-Line | ||
| 20 | 530403810 | Assy-Cap Retainer | ||
| 545117538 | Operator Manual | Not Shown | ||
| 545052801 | Decal-Warning | Not Shown |
