Weedeater 400

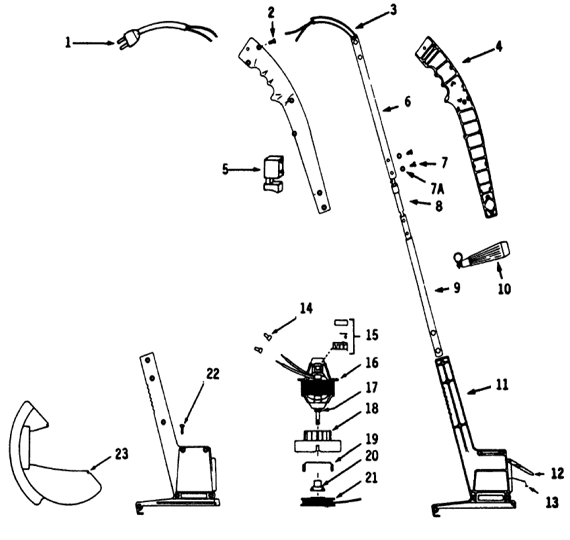

Weedeater 400 Parts
| # | Part # | Weedeater 400 Part Name | Note |
|---|---|---|---|
| 1 | 534234502 | POWER CORD PIGTAIL | |
| 2 | 530092598 | SCREW | |
| 3 | 530092611 | HARNESS | |
| 4 | 530092599 | HANDLE SET | |
| 6 | 92-612 | 18 x 2.5 Lawn Mower Blade | |
| 7 | 530092613 | SCREW | |
| 7A | 530090887 | WASHER, LOCK | |
| 8 | 530092614 | SCREW BARRIER | |
| 9 | 92-615 | 21.375 x 2.5 Lawn Mower Blade | |
| 10 | 530092616 | ASSIST HANDLE | |
| 11 | 530092617 | MOTOR HOUSING SET | |
| 12 | 530092618 | CLIP OFF LEVER | |
| 13 | 530090873 | CLIP OFF BLADE | |
| 14 | 530090876 | CONNECTOR | |
| 15 | 530090891 | BRUSH KIT | |
| 16 | 530090892 | MOTOR ASSEMBLY | |
| 17 | 530340150 | Washer | |
| 18 | 530092619 | HUB | |
| 19 | 530092621 | LINE SAVER | |
| 20 | 530092622 | HUB RETAINER | |
| 22 | 530092624 | SCREW |
