Weedeater 500-E

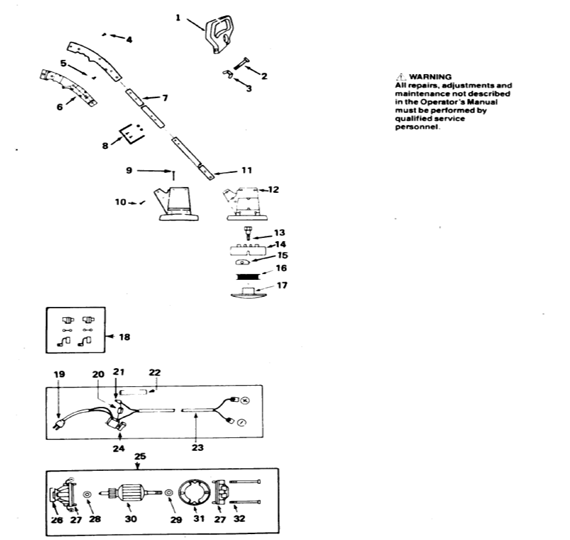

Weedeater 500-E Parts

Weedeater 500-E

#Part #Weedeater 500-E Part NameNote
2530092638BOLT
3530092049Wing Nut
4530092598SCREW
5530092624SCREW
6530092639TRIGGER HANDLE SET
7530092641TUBE, UPPER
8530092626TUBE FASTENER KIT
9530092642SCREW
10530092643SCREW
11530092644TUBE, LOWER
12530092645Motor Housing Set
13534223325Drive Adapter Sleeve
14530092647HUB
15530093216LINE SAVER
16952701504SPOOL. WOUND
18534450400Brush Kit
20530092677DIODE
21530090876CONNECTOR
22530092654SLEEVE
23530092655HARNESS
24530092656MOTOR
25534226000Insulator
26530092658END BELL SET
28530092659WASHER-THRUST, .025"
29530092661WASHER-THRUST, .010"
30530092662ARMATURE
31530092663FIELD ASSEMBLY
32530092664SCREW
