SST25CE

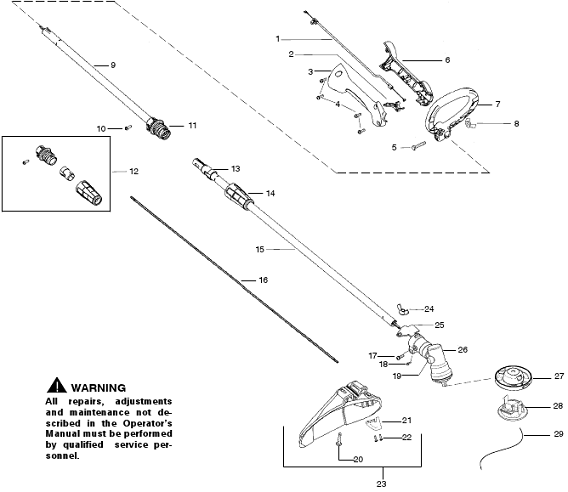

SST25CE Parts
| # | Part # | SST25CE Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530057991 | Assy - Throttle Cable | Buy | |
| 2 | 530058000 | Trigger | Buy | |
| 3 | 530057582 | Throttle Hsg. | Right | Buy |
| 4 | 530015880 | Screw - Throttle Hsg. | Buy | |
| 5 | 530015821 | Bolt - Handle/Shield | Buy | |
| 6 | 530057581 | Throttle Hsg. | Left | Buy |
| 7 | 530058580 | Assy - Handle Assist | Incl. 5,8 | |
| 8 | 530016152 | Wingnut | ||
| 9 | 545008059 | Kit - Shaft Upper | Incl. 10,11 | |
| 10 | 530015880 | Screw | Buy | |
| 11 | Collet | Ref. 12 | ||
| 12 | 545008057 | Kit - Coupler Shaft | Incl. 10,11,13,14 | |
| 13 | Collar - Shaft | Ref. 12 | ||
| 14 | Nut - Collet | Ref. 12 | ||
| 15 | 545008068 | Kit - Shaft Lower | Incl. 13,14 | |
| 16 | 576198301 | Shaft - Flex | ||
| 17 | 530016014 | Screw | Buy | |
| 18 | 530016224 | Screw - Alignment | Buy | |
| 19 | 575724501 | Plug - Grease | ||
| 20 | 530015820 | Bolt | Buy | |
| 21 | 530052285 | Line Limiter | Buy | |
| 22 | 530016349 | Screw - Line Limiter | Buy | |
| 23 | 530071771 | Kit - Shield Assy | Incl. 20,21,22,24 | Buy |
| 24 | 530016152 | Wingnut | ||
| 25 | 530096067 | Bracket - Shield | Buy | |
| 26 | 530096068 | Assy - Gearbox | Buy | |
| 27 | 545202401 | Head - Fixed Line | ||
| 28 | 545202501 | Cap - Fixed line | ||
| 29 | 545214501 | Line .095 round | 5 pcs | |
| 115379627 | Operator Manual | Not on Diagram | ||
| 545207301 | Decal - Shaft Warning | Not on Diagram | ||
| 527291101 | Decal - Spark Arrestor Warning | Not on Diagram |

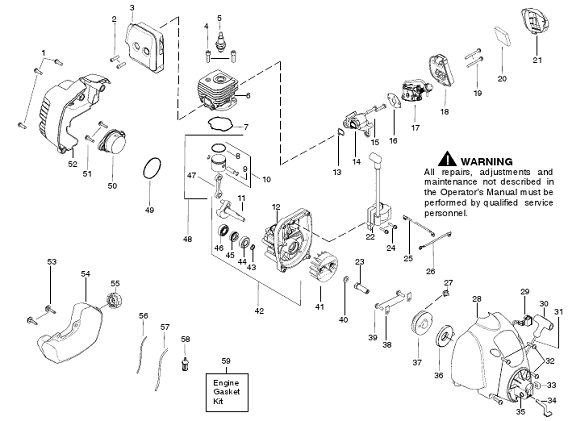

SST25CE Engine Parts
| # | Part # | SST25CE Engine Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530015814 | Screw | Buy | |
| 2 | 530058982 | Bolt- Muffler | Buy | |
| 3 | 545227901 | Assy- Muffler/Shield | Incl. 2 | |
| 4 | 530015953 | Screw- Cylinder | Buy | |
| 5 | 952030249 | Spark Plug | RCJ 6Y | Buy |
| 6 | 530012541 | Cylinder | Buy | |
| 7 | 530071750 | Seal- Cylinder | kit | Buy |
| 8 | 530055120 | Piston Ring | Buy | |
| 9 | 530015162 | Retainer- Piston Pin | Buy | |
| 10 | 530071357 | Kit - Piston | Incl. 8, 9 | |
| 11 | 530057829 | Assy- Crankshaft | Buy | |
| 12 | 530012582 | Assy- Crankcase | Incl. 44,45,46 | Buy |
| 13 | 530071750 | Seal- Cyl/Carb. | kit | Buy |
| 14 | 530057547 | Adapter- Carb. | Buy | |
| 15 | 530016441 | Screw | ||
| 16 | 530071750 | Gasket- Carb. | kit | Buy |
| 17 | 577135901 | Kit--Carb. | Zama | |
| 18 | 530057585 | Air Box | Buy | |
| 19 | 530016429 | Screw | Buy | |
| 20 | 530057781 | Foam- Air Filter | Buy | |
| 21 | 576694401 | Cover- Air Box | ||
| 22 | 545024901 | Ignition Module | Buy | |
| 23 | 530038604 | Coupling- Drive | Buy | |
| 24 | 530016357 | Screw | Buy | |
| 25 | 530014663 | Assy- Leadwire | Buy | |
| 26 | 530014662 | Assy- Ground Wire | Buy | |
| 27 | 530016392 | Screw | Buy | |
| 28 | 530058600 | Assy.- Fan Hsg | Buy | |
| 29 | 545081869 | Kit- Switch | ||
| 30 | 530027569 | Handle- Starter | Buy | |
| 31 | 530071767 | Kit- Rope | Buy | |
| 32 | 530016386 | Screw | Buy | |
| 33 | 530016124 | Nut | Buy | |
| 34 | 530057588 | Clip- Spring | Buy | |
| 35 | 530016430 | Screw | Buy | |
| 36 | 530042085 | Spring- Starter | Buy | |
| 37 | 530071786 | Kit- Pulley Starter | Buy | |
| 38 | 530027523 | Retainer- Pulley | Buy | |
| 39 | 530015775 | Screw | Buy | |
| 40 | 530015828 | Washer- Flat | Buy | |
| 41 | 545005101 | Assy- Flywheel | Buy | |
| 42 | 530071768 | Assy- C'case & C'shaft | Incl. 11,12,43 | Buy |
| 43 | 530015941 | Retain. Ring- C'shaft | Buy | |
| 44 | 530055728 | Outer Bearing | Buy | |
| 45 | 530019264 | Seal- C'case | Buy | |
| 46 | 530032125 | Inner Bearing | Buy | |
| 47 | 530069945 | Assy- Connecting Rod | Buy | |
| 48 | 530071785 | Kit- piston/rod | Incl. 10,47 | Buy |
| 49 | 530071750 | O- Ring C'case | kit | Buy |
| 50 | 530057954 | Assy- Plug | Incl.49 | Buy |
| 51 | 530016386 | Screw | Buy | |
| 52 | 545011004 | Shroud- Rear | ||
| 53 | 530016445 | Retainer- Tank | Buy | |
| 54 | 545104103 | Assy- Fuel Tank | Incl.filter, lines & fuel cap | Buy |
| 55 | 530014347 | Assy- Fuel Cap | Buy | |
| 56 | 530069247 | Kit- Fuel Line | Small | Buy |
| 57 | 530069216 | Kit- Fuel Line | Large | Buy |
| 58 | 530095646 | Assy- Fuel Pickup | Buy | |
| 59 | 530071750 | Kit- Engine Gasket | Incl. 7,13,16,49 | Buy |
| 530035560 | Carburetor Adjustment Tool | Not Shown | Buy | |
| CP7826 | Compression Tester | Not Shown | Buy |
