Weedeater 108

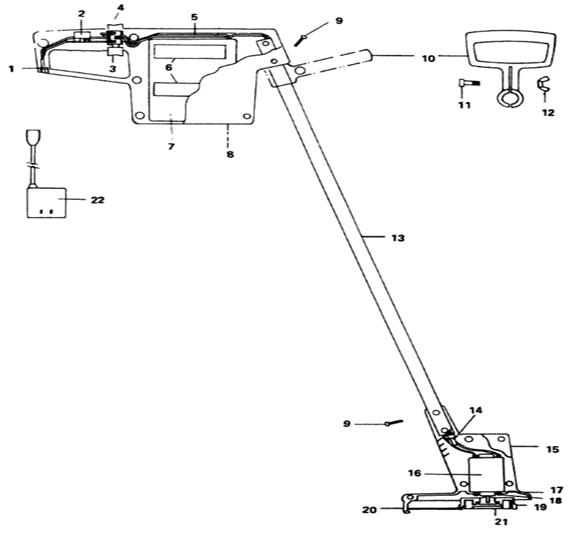

Weedeater 108 Parts
| # | Part # | Weedeater 108 Part Name | Note |
|---|---|---|---|
| 1 | 530092579 | RECEPTACLE | |
| 2 | 530092581 | FUSE | |
| 3 | 530092582 | SWITCH ASSEMBLY | |
| 4 | 530092583 | SWITCH LOCK | |
| 5 | 530092584 | HARNESS | (Inc. 1, 2, and 3) |
| 6 | 530092585 | FOAM SPACER | |
| 7 | 530092586 | BATTERY | |
| 8 | 530092587 | BATTERY HSNG. ASSY. w/SWITCH LOCK | |
| 9 | 530090827 | Screw - #8 - 11 x 3/4" Pan Hd. Plastite | |
| 10 | 530092588 | ASSIST HANDLE | |
| 11 | 530625509 | Screw | |
| 12 | 530092049 | Wing Nut | |
| 13 | 530092589 | TUBE | |
| 14 | 530090876 | CONNECTOR | |
| 15 | 530093764 | MOTOR HOUSING SUB ASSEMBLY | |
| 16 | 530093557 | MOTOR ASSEMBLY | |
| 17 | 530092593 | MOTOR MOUNT | |
| 18 | 530092594 | SCREW | |
| 19 | 530092595 | HUB | |
| 20 | 530090874 | TAIL INTERFERENCE BLADE | |
| 21 | 530092597 | CHARGER |
