Weedeater 1215

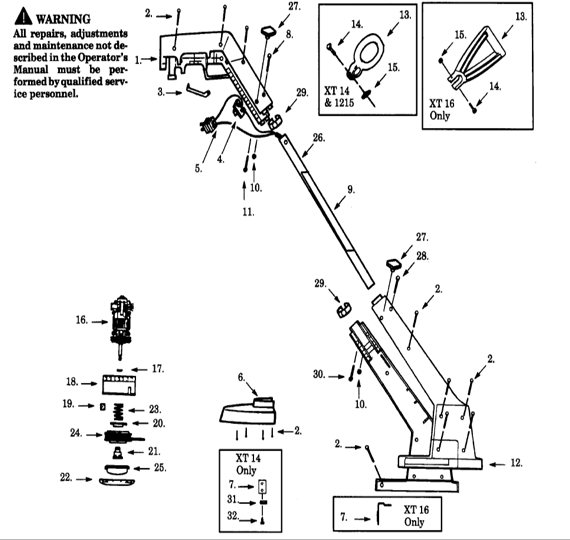

Weedeater 1215 Parts
| # | Part # | Weedeater 1215 Part Name | Note |
|---|---|---|---|
| 1 | 530401025 | Switch Handle Set | |
| 1 | 530401547 | Switch Handle Set | |
| 2 | 530352036 | Screw | |
| 3 | 530347654 | Trigger | |
| 4 | 530347897 | On/Off Switch | |
| 5 | 530401654 | Wiring Harness | (Incl. 4), XT14,XT16 |
| 5 | 530401549 | Wiring Harness | (Incl. 4), 1215 |
| 6 | 530027614 | 16" Shield | |
| 6 | 530401552 | Shield For The XT1215 | |
| 7 | 530351801 | Blade Cover | |
| 7 | 530350362 | Line Limiter | |
| 8 | 530400023 | Screw | |
| 9 | 530400274 | Warning Decal | |
| 10 | 534790500 | Nut | |
| 11 | 530348050 | Screw | |
| 12 | 530401022 | Motor Hsg. Set | |
| 12 | 530402147 | Motor Hsg. Set | |
| 12 | 530401394 | Motor Hsg. Set | |
| 13 | 530326262 | Assist Handle | |
| 13 | 530069496 | Cushioned Assist Handle Kit, | |
| 13 | 530326262 | Assist Handle | |
| 14 | 530340228 | Bolt | |
| 15 | 530091373 | Wingnut | |
| 16 | 530400507 | Motor Ass'y. | |
| 16 | 530400508 | Motor Assembly | |
| 17 | 530347987 | Washer | |
| 18 | 530401015 | Hub w/ Line Saver | |
| 19 | 530350017 | Spacer | |
| 20 | 530328929 | Cap-Spring | |
| 21 | 530350365 | Drive Gear Assy Nut | |
| 22 | 530092133 | Cover | |
| 23 | 530340007 | Spring | |
| 24 | 952701519 | Spool w/Line | |
| 24 | 952701523 | Spool, Wound | |
| 25 | 530401183 | Button-Black | |
| 26 | 530401014 | Tube Ass'y. w/ Decal | |
| 26 | 530401561 | Tube Ass'y. w/ Decal | |
| 27 | 530347898 | Knob | |
| 28 | 530400024 | Screw | |
| 29 | 530401555 | Snap Button | |
| 30 | 530348051 | Screw, Lower Knob | |
| 31 | 530351801 | Blade Cover | |
| 32 | 530351800 | Screw |
