Weedeater 4500

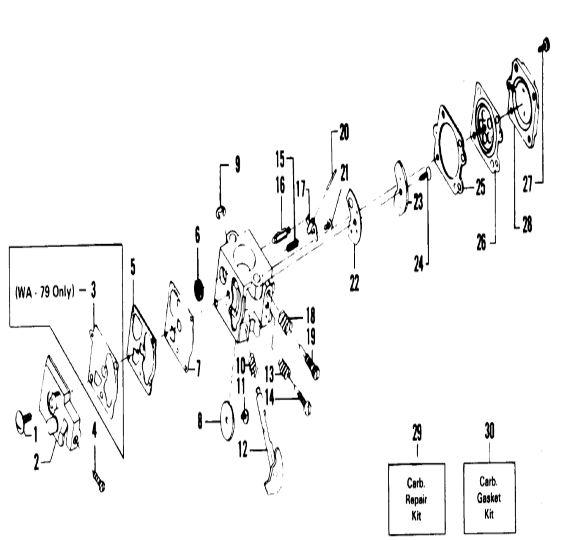

Weedeater 4500 Carburetor Parts
| # | Part # | Weedeater 4500 Carburetor Part Name | Note |
|---|---|---|---|
| 1 | 530035017 | Screw - Pump Cover | |
| 2 | 530035154 | Pump Cover Assembly | WA-79 |
| 2 | 530035191 | Cover Fuel Pump | WA-149 #35183 |
| 3 | 530035135 | Diaphragm Fuel Pump | WA-79 |
| 4 | 530035156 | Idle Speed Screw | |
| 5 | 530035009 | Gasket-Fuel Pump | WA-79 |
| 5 | 530035164 | Gasket-Fuel Pump | WA-149 #35183 |
| 6 | 530035178 | Screen-Fuel Inlet | |
| 7 | 530035152 | Diaphragm - Pump | WA-79 |
| 7 | 530035166 | Diaphragm-Fuel Pump | WA-149 #35183 |
| 8 | 530035133 | Valve - Throttle | |
| 9 | 530035007 | Ring-Throttle Retainer | |
| 10 | 530035138 | Spring---Throttle Return | |
| 11 | 530035015 | Screw-Throttle Valve | |
| 12 | 530035132 | Shaft Assembly-Throttle | |
| 13 | 530035023 | Idle Needle Spring | |
| 14 | 530035141 | Idle Needle | |
| 15 | 530035139 | Spring-Metering Lever | |
| 16 | 530035106 | Valve-Inlet Needle | |
| 17 | 530035031 | Lever-Metering | |
| 18 | 530035036 | Spring-High Speed Needle | |
| 19 | 530035142 | Hi Speed Needle | |
| 20 | 530035028 | Pin - Metering Lever | |
| 21 | 530035016 | Screw - Metering Lever Pin | |
| 22 | 530035147 | Circuit Plate Gasket | |
| 23 | 530035042 | Plate-Circuit | |
| 24 | 530035137 | Screw-Circuit Plate | |
| 25 | 530035151 | Gasket-Metering Diaphragm | |
| 26 | 530035014 | Diaphragm-Metering | |
| 27 | 530035153 | Screw - Assembly - Metering Cover & Throttle Shaft Clip | |
| 28 | 530035149 | Cover - Metering Diaphragm | |
| 29 | 530035144 | Kit Carb - Kwik Repair Kit | WA-79 |
| 29 | 530035185 | Carb. Gasket/Diaphragm Kit | WA-149 #35183 |
| 30 | 530035145 | Kit Carb - Gasket/Diaphragm | WA-79 |

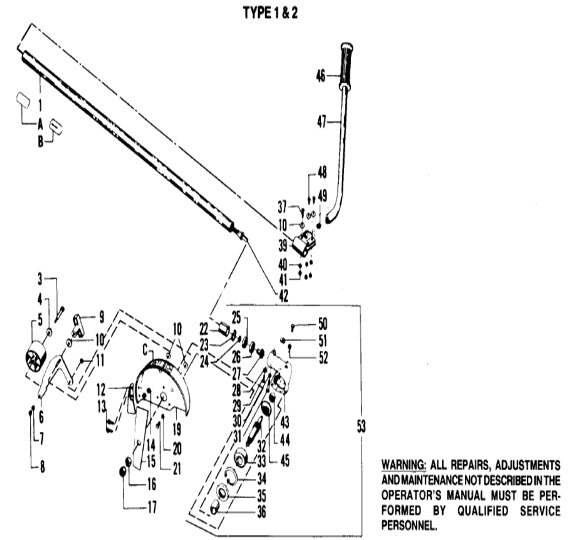

Weedeater 4500 Parts
| # | Part # | Weedeater 4500 Part Name | Note |
|---|---|---|---|
| 1 | 530094415 | Assy-Drive Shaft Hs | |
| 3 | 530092327 | Shoulder-Bolt-Wheel #5/16-18 x 5/64" | |
| 4 | 530001576 | Washer | |
| 5 | 530092324 | Wheel - Depth Adjusting | |
| 6 | 530092348 | Bracket, Wheel | |
| 7 | 530001717 | Coupling Washer | |
| 8 | 530015303 | Nut Bar Mounting | |
| 9 | 530092059 | Knob - 1/4 - 20" - Model 2610 | |
| 10 | 530015149 | Washer-Barclamp Screw | |
| 11 | 530015515 | Locknut | |
| 12 | 530093174 | Guide-Edger | |
| 13 | 530015216 | Screw - Hand Guard OPTIONAL | |
| 14 | 530015653 | Nut | |
| 15 | 530092343 | Blade-Edger 7" | |
| 16 | 530093819 | Lockwasher | |
| 17 | 530093818 | Nut-Heavy Duty | |
| 19 | 530010725 | Guard Assembly | |
| 20 | 530092227 | Washer -Lock Star | |
| 21 | 530015426 | Bolt | |
| 22 | 530092339 | Sleeve - Drive Shaft Tube | |
| 23 | 530091574 | Snap Ring, Gear Housing Bearing | |
| 24 | 530092326 | Retaining Ring - Pinion | |
| 25 | 530091575 | Bearing, Pinion Gear | |
| 26 | 530092329 | Bearing - Open | |
| 27 | 530092325 | Gear - Pinion | |
| 28 | 530091615 | Washer | |
| 29 | 530092354 | Screw - Index - #10-24 x 1/2" | |
| 30 | 530092278 | Lockwasher 1/4 - Pinch Clamp | |
| 31 | 530092353 | Screw - Pinch Clamp - #1/4-20 x 1-3/16" | |
| 32 | 530092333 | Shaft - Output | |
| 33 | 530092335 | Bearing - Large | |
| 34 | 530092336 | Retaining Ring | |
| 35 | 530092337 | Seal - Oil | |
| 36 | 530092338 | Collar - Shaft | |
| 37 | 530015117 | Screw-Cylinder Cover/Adaptor | |
| 39 | 530092383 | Clamp-Handlebar | |
| 40 | 530001642 | Lockwasher | |
| 41 | 530015197 | Nut | |
| 42 | 530092554 | Drive Shaft Assembly | |
| 43 | 530092332 | Gear Housing | |
| 44 | 530092331 | Bearing - Small | |
| 45 | 530092334 | Gear | |
| 46 | 530091402 | Grip | |
| 47 | 530092555 | Handlebar | |
| 48 | 530625509 | Screw | |
| 49 | 530092559 | Spacer - Handlebar | |
| 50 | 530092352 | Screw - Lubrication Filler - #5/16-18 x 3/8 | |
| 51 | 530092308 | Spacer 5/16 - Fiber - Pinch Clamp | |
| 52 | 530092556 | Washer - Fiber | |
| 53 | 530092265 | Gear Hsg Assy | Incl. #'s 22 - 36, 43, 44, 45 & 50 - 52 |
| BA | 530025266 | Decal - Product | |
| BB | 530026233 | Decal - Handlebar Location | |
| B | 530092192 | Handlebar Cap | |
| B | 530060654 | Carton | |
| B | 530064544 | Manual-Owners |

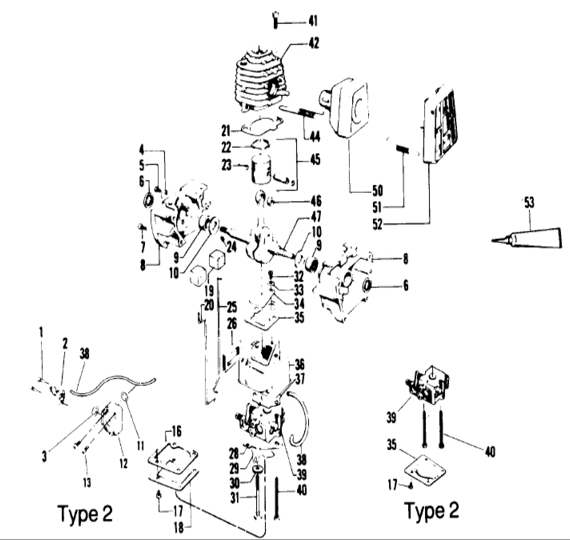

Weedeater 4500 Engine Parts
| # | Part # | Weedeater 4500 Engine Part Name | Note |
|---|---|---|---|
| 1 | 530015235 | Screw | |
| 2 | 530010677 | Accumulator Cap Ass'y. | |
| 3 | 530019128 | O-Ring - Accumulator Chamber | |
| 4 | 530023661 | Clamp - Module Lead | |
| 5 | 530015004 | Screw | |
| 6 | 530019059 | Crankcase Seal | |
| 7 | 530015369 | Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger | |
| 8 | 530010757 | Crankcase Assembly | Incl. #6, 9 & Qty. 4 of #7 |
| 9 | 530032029 | Crankshaft Bearing | |
| 10 | 530015351 | Washer | |
| 11 | 530019131 | O-Ring (Orifice) | |
| 12 | 530010651 | Accumulator Ass'y. | Incl. #2, 3 & 11 |
| 13 | 530015565 | Screw | |
| 16 | 530019112 | Gasket - Carburetor Case Cover | |
| 17 | 530015235 | Screw | |
| 19 | 530023373 | Throttle Wire Boot | |
| 21 | 530069219 | Engine Gasket Kit | |
| 22 | 530024302 | Ring - Piston | |
| 23 | 530015162 | Wrist Pin Retainer | |
| 24 | 530015126 | Flywheel Key | |
| 25 | 530024902 | Throttle Wire | |
| 25 | 530026177 | Throttle Wire | |
| 26 | 530019105 | Carburetor Case Seal | |
| 29 | 530024558 | Choke Shutter | |
| 30 | 530015254 | Wave Washer | |
| 31 | 530015404 | Screw - 10 - 24 X 2-1/8" - Fil. Hd. - Carburetor Shoulder | |
| 32 | 530015241 | Screw | |
| 33 | 530023367 | Washer | |
| 34 | 530024438 | Reed Valve | |
| 35 | 530019108 | Carburetor Case to Crankcase Gasket | |
| 36 | 530024409 | Plastic Housing | |
| 36 | 530026046 | Case-Carburetor | |
| 37 | 530019157 | Carburetor Gasket | |
| 38 | 530069571 | Return Line | |
| 38 | 530021055 | Line-Fuel (Carburet | |
| 39 | 530035183 | Carburetor | |
| 40 | 530015379 | Screw - 10 - 24 X 1-7/8" - Fil. Hd. - Carburetor | |
| 40 | 530015566 | Screw-10-24X2 Slott | |
| 41 | 530015239 | Screw | |
| 42 | 530012247 | Cylinder | |
| 44 | 530036409 | Muffler Attachment Spring | |
| 45 | 530022198 | Piston Assembly | |
| 46 | 530032057 | Bearing - Wrist Pin | |
| 47 | 530026675 | Assy-C'Shaft & Rod | |
| 51 | 530024932 | Spring - Muffler Guard | |
| 52 | 530024855 | Guard - Muffler | |
| 53 | 530030054 | Crankcase Sealant |
| # | Part # | Weedeater 4500 Engine Part Name | Note |
|---|---|---|---|
| 1 | 530056402 | Handle-Starter | |
| 2 | 530069178 | Fan Housing | Incl. #15, 19, 27 & 31 |
| 3 | 530015247 | Screw | |
| 4 | 530025472 | Fuel Line Fitting | |
| 5 | 530024371 | Air Filter | |
| 6 | 530069182 | Kit-Grounding Switc | Incl. #9, 21, 45 & 46 |
| 7 | 530024436 | Bumper - Fuel Tank Housing | |
| 8 | 530024656 | Handle And Fuel Tank Housing | |
| 9 | 530002582 | Grounding Switch Nut | |
| 11 | 530024665 | Handle Cover | |
| 13 | 530024365 | Trigger - Throttle | |
| 14 | 545008009 | Starter Spring | |
| 15 | 530026035 | Baffle-Air | |
| 17 | 530015814 | Screw | |
| 18 | 530015816 | Screw | |
| 19 | 530026122 | Spacer | |
| 20 | 530015123 | Washer | |
| 21 | 530025995 | Tab-45 Degree Electrical | |
| 22 | 530626605 | Flywheel Nut | |
| 23 | 530023817 | Starter Dog Spring | |
| 24 | 530015127 | Flywheel Washer | |
| 25 | 530039114 | Flywheel Assembly | Incl. #23 |
| 26 | 530024461 | Trigger Spring | |
| 28 | 502271102 | High Tension Lead Assembly | |
| D | 530039103 | High Tension Lead Assembly | |
| 29 | 530024435 | Plug Wire Grommet | |
| 32 | 530069181 | Kit - Ignition Module | |
| 33 | 530024303 | Knob - Choke | |
| 34 | 530069196 | Kit - Clutch Washer (3/8" Flat) | |
| 35 | 530069194 | Kit - Clutch Assembly | |
| 36 | 530039082 | High Tension Lead Wire | |
| 37 | 530003934 | Spark Plug Boot | |
| 38 | 507475326 | Spark Plug Boot | |
| 39 | 530030077 | Spark Plug | |
| 40 | 530010902 | Assy-Drum & Couplin | |
| 41 | 530012096 | Shroud | |
| 42 | 530015583 | Screw-10-24 X 1-1/2 | |
| 43 | 530093802 | Bolt - Pinch Clamp | |
| 44 | 530015369 | Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger | |
| 45 | 530039122 | Lead Wire-Ground | |
| 46 | 530024569 | Washer | |
| 47 | 530069232 | Rope (3 ft.) | |
| 48 | 530010776 | Fuel Tank Assembly | |
| 48 | 530010773 | Assy-Fuel Tank W/Re | |
| 49 | 530091878 | Fuel Filter Assembly | |
| 50 | 530026119 | Check Valve | |
| 52 | 530014347 | Fuel Cap (w/ retainer) | |
| 53 | 530021052 | Fuel Inlet Line | |
| 54 | 530026109 | Fuel Filter (Inlet Line) | |
| 55 | 530026032 | Injector Button | |
| 56 | 530010738 | Pump Ass'y. | Incl. #58 |
| 57 | 530015312 | Screw | |
| DA | 530026511 | Decal | |
| DA | 530026145 | Decal | |
| DB | 530025303 | Decal - Warning - Fuel Cap | |
| DC | 530025269 | Decal-Should | |
| DD | 530025271 | Decal-Should |
