25HO
25HO Carburetor Parts
| # | Part # | 25HO Carburetor Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530038404 | Limiter Cap | Buy | |
| 2 | 530069842 | Carburetor Repair Kit | Buy | |
| 3 | 530069844 | Carb Gasket/Diaphragm | Buy | |
| 4 | 530035341 | Idle Needle-Type II | Buy | |
| 5 | 530035342 | Spring-Idle Needle-Type II | Buy | |
| A | 530071635 | Carburetor Assembly (Wt-631) | WA-226 | Buy |

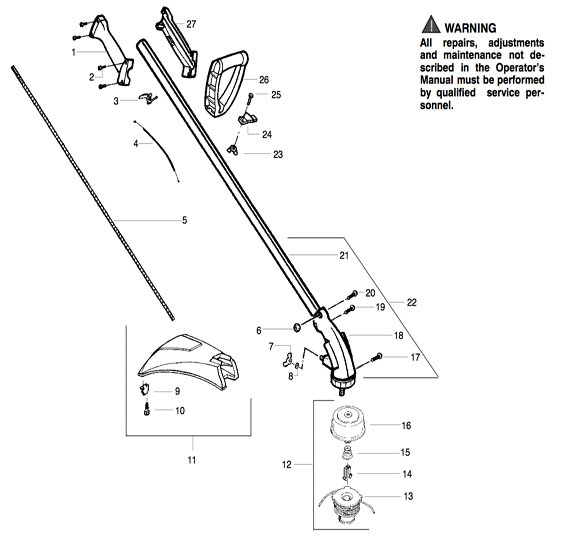

25HO Parts
| # | Part # | 25HO Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530038581 | Hsg.-Throttle (Right) | Buy | |
| 2 | 530016273 | Screw | Buy | |
| 3 | 530038682 | Trigger | Buy | |
| 4 | 530071548 | Kit-Throttle Cable | Buy | |
| 5 | 530095391 | Shaft-Flex | Buy | |
| 6 | 530016284 | Nut | Buy | |
| 7 | 530016225 | Wingnut-Gear Box | Buy | |
| 8 | 530092062 | Washer - Cylinder Cover | Buy | |
| 9 | 530052286 | Limiter - Line | Buy | |
| 10 | 530015880 | Screw-Line Limiter | Buy | |
| 11 | 530069752 | Kit-Shield Ass'y. | Incl. 9 & 10 | Buy |
| 12 | 952711566 | Accy-Cutting Head Ass'y. | Incl. 13-16 | Buy |
| 13 | 952711548 | Accy-Spool w/Line | Buy | |
| 14 | 530401957 | Retainer - Spool | Buy | |
| 15 | 530053241 | Spring - Return | Buy | |
| 16 | 530071306 | Kit-Hub Ass'y | Buy | |
| 17 | 530016202 | Screw | Buy | |
| 18 | 530095638 | Assy-Gear Box | Buy | |
| 19 | 530016224 | Screw | Buy | |
| 20 | 530016312 | Screw | Buy | |
| 21 | 530053002 | Drive Shaft Hsg. Ass'y | Buy | |
| 22 | 530069927 | Gear Box/Shaft Kit | Incl. #18 & 21 | Buy |
| 23 | 530091373 | Wingnut | Buy | |
| 24 | 530094742 | Clamp | Buy | |
| 25 | 530015820 | Bolt | Buy | |
| 26 | 530071747 | Handle-Assist | Buy | |
| 27 | 530038580 | Hsg.-Throttle (Left) | Buy | |
| B | 530088826 | Manual Operators | Buy | |
| B | 530055350 | Decal - Shaft Warning |

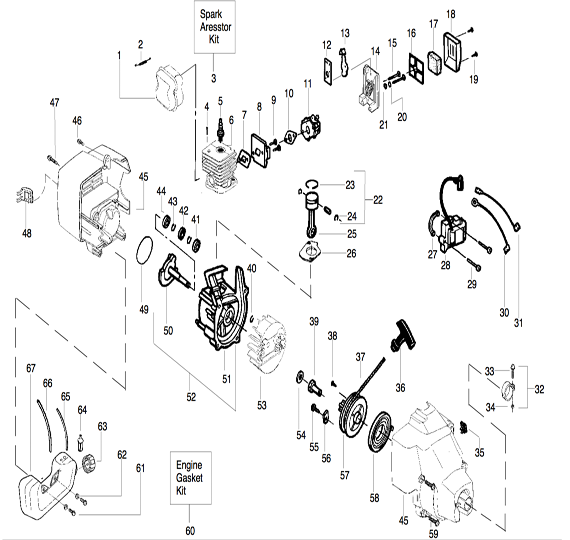

25HO Engine Parts
| # | Part # | 25HO Engine Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530071390 | Muffler Kit | Incl. 2, 3 | Buy |
| 2 | 530042088 | Muffler Spring | Buy | |
| 3 | 530071391 | Screen-Spark Arrestor | Buy | |
| 4 | 530015953 | Screw-Cylinder | Buy | |
| 5 | 952030201 | Spark Plug (Rcj-8Y) | Buy | |
| 7 | 530069913 | Gasket-Cyl/Carb.(Kit) | Buy | |
| 8 | 530069994 | Carb. Adapter Kit | Buy | |
| 9 | 530016014 | Screw | Buy | |
| 10 | 530069913 | Gasket-Cyl/Carb.(Kit) | Buy | |
| 11 | 530071635 | Carburetor Assembly (Wt-631) | Incl. Limiter Cap | Buy |
| 12 | 530038747 | Plate-Choke Mounting | Buy | |
| 13 | 530038686 | Shutter-Choke | Buy | |
| 14 | 530052431 | Box-Air | Buy | |
| 15 | 530015887 | Carb Screw | Buy | |
| 16 | 530036569 | Plate-Filter Support | Buy | |
| 17 | 530036575 | Air Filter Foam | Buy | |
| 18 | 530036568 | Air Filter Cover | Buy | |
| 19 | 530015880 | Screw-Line Limiter | Buy | |
| 20 | 530015852 | Spacer | Buy | |
| 21 | 530015254 | Wave Washer | Buy | |
| 22 | 530069987 | Piston Kit | Incl. 23, 24 & Pin | Buy |
| 23 | 545154009 | Ring-Piston | ||
| 24 | 530015162 | Wrist Pin Retainer | Buy | |
| 25 | 530069615 | Connecting Rod Assembly | Buy | |
| 26 | 530069913 | Gasket-Cyl/Carb.(Kit) | Buy | |
| 27 | 530036145 | Spacer | Buy | |
| 28 | 530055160 | Module-Ignition | Buy | |
| 29 | 530015954 | Screw | Buy | |
| 30 | 530014662 | Ground Wire | Buy | |
| 31 | 530014663 | Lead Wire | Buy | |
| 32 | 530056365 | Assembly-Nose Cone Clamp | Incls. 33 & 34 | Buy |
| 33 | 530015650 | Screw 10-24 x 5/8 | Buy | |
| 34 | 530016124 | Nut | Buy | |
| 35 | 530071356 | Kit-Momentary Switch | Buy | |
| 36 | 530027569 | Starter Handle | Buy | |
| 37 | 530069232 | Rope (3 ft.) | Buy | |
| 38 | 530016080 | Rope Retain Screw | Buy | |
| 39 | 530038604 | Coupling - Drive | Buy | |
| 40 | 530015941 | Retaining Ring | Buy | |
| 41 | 530032124 | Outer Bearing | Buy | |
| 42 | 530019179 | Crankcase Seal | Buy | |
| 43 | 530015945 | Retaining Ring | Buy | |
| 44 | 530032125 | Inner Bearing | Buy | |
| 45 | 530069685 | Kit-Assy Fan-Hsg/Sh | Buy | |
| 46 | 530015934 | Screw | Buy | |
| 47 | 530015810 | Screw | Buy | |
| 48 | 530054536 | Guard-Muffler | Buy | |
| 50 | 530054753 | Assembly-Crankshaft | Buy | |
| 51 | 530071627 | Kit-Assembly-Crankcase | Incl. 41-44 | Buy |
| 52 | 530071624 | Kit-Assembly-C'Case & Crankshaft | Incl. 40, 50, 51 | Buy |
| 53 | 530054115 | Assembly - Flywheel | Buy | |
| 54 | 530015828 | Washer | Buy | |
| 55 | 530015775 | Screw | Buy | |
| 56 | 530027523 | Retainer | Buy | |
| 57 | 530069400 | Starter Pulley | Incl. 39 | Buy |
| 58 | 545008010 | Starter Spring | ||
| 59 | 530015810 | Screw | Buy | |
| 60 | 530069913 | Gasket-Cyl/Carb.(Kit) | Incl. 7, 10, 26, 49 | Buy |
| 61 | 530015886 | Screw | Buy | |
| 62 | 530016131 | Washer | Buy | |
| 63 | 530014347 | Fuel Cap (w/ retainer) | Buy | |
| 64 | 530095646 | Fuel Pick-up Ass'y. | Buy | |
| 65 | 530069247 | Kit - Line Carb/Purge | Part Number 530069247- Purge Lines Required to be Ordered; Old Purge Lines Not Compatible with this Bulb | Buy |
| 66 | 530069216 | Kit-Line Tank/Purge | Buy | |
| 67 | 545103802 | Fuel Tank Assembly | Incl. filter, lines & fuel cap |
