FL21

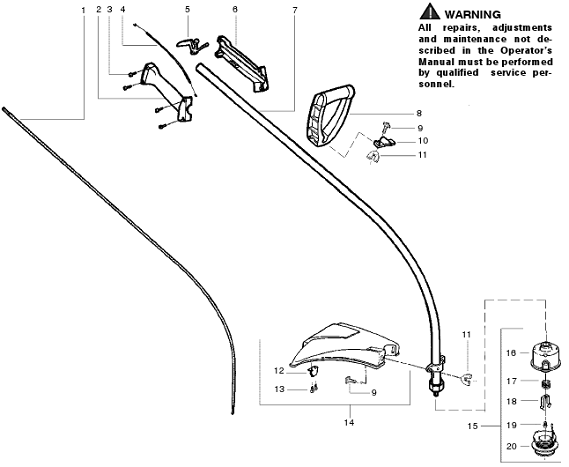

FL21 Parts
| # | Part # | FL21 Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | Shaft---Flex | |||
| 2 | 530038581 | Throttle Hsg. | Right | Buy |
| 3 | 530016273 | Screw - Throttle Hsg. | Buy | |
| 4 | 530071548 | Assy - Throttle Cable | Buy | |
| 5 | 530038682 | Trigger | Buy | |
| 6 | 530038580 | Hsg.---Throttle | Left | Buy |
| 7 | Assy---Drive Shaft Hsg. | |||
| 8 | 530038708 | Handle---Assist | Buy | |
| 9 | 530015820 | Bolt---Handle/Shield | Buy | |
| 10 | 530094742 | Clamp---Handle | Buy | |
| 11 | 530016118 | Wingnut - Handle/Shield | ||
| 12 | 530052287 | Line Limiter | Buy | |
| 13 | 530015966 | Screw - Line Limiter | Buy | |
| 14 | 530069686 | Kit---Shield Ass'y. | Incl. 9,11,12,13 | Buy |
| 15 | 952701666 | Accy---Cutting Head | Incl. 16-20 | Buy |
| 16 | 530069690 | Ass'y---Hub | ||
| 17 | 530401464 | Spring---Compression | Buy | |
| 18 | 530401466 | Clip---Retainer---Head | Buy | |
| 19 | 530401467 | Screw w/ Washer | Buy | |
| 20 | 952711527 | Spool w/Line | Buy | |
| 21 | 530088138 | Operator Manual | Not Shown | Buy |
| 22 | 530055350 | Shaft Warning Decal | Not Shown | |
| 23 | 530055162 | Stop Decal | Not Shown |

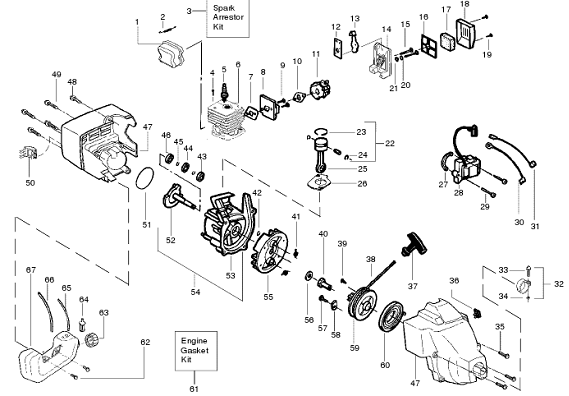

FL21 Engine Parts
| # | Part # | FL21 Engine Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530071396 | Kit -- Muffler | Incl. 2,3 | Buy |
| 2 | 530042088 | Spring - Muffler | Buy | |
| 3 | 530071391 | Kit--Spark Arrestor | Buy | |
| 4 | 530015953 | Screw--Cylinder | Buy | |
| 5 | 952030249 | Spark Plug | RCJ J6Y | Buy |
| 6 | 530069819 | Kit -- Cylinder | ||
| 7 | 530069816 | Gasket--Cylind./Carb. | ||
| 8 | 530069769 | Adapter--Carb. | Buy | |
| 9 | 530016014 | Screw | Buy | |
| 11 | 530071635 | Repair Kit - Carb Walbro WT-631 | K24-WAT Incl. Limiter Cap | BuyBuy |
| 12 | 530038747 | Choke Plate Mounting | Buy | |
| 13 | 530038686 | Shutter--Choke | Buy | |
| 14 | 530052431 | Air Box | Buy | |
| 15 | 530015887 | Screw | Buy | |
| 16 | 530036569 | Plate -- Filter Support | Buy | |
| 17 | 530036575 | Foam--Air Filter | Buy | |
| 18 | 530036568 | Cover--Air Filter | Buy | |
| 19 | 530015880 | Screw | Buy | |
| 20 | 530015852 | Spacer--Choke | Buy | |
| 21 | 530015254 | Washer | Buy | |
| 22 | 530069821 | Kit -- Piston | Incl. 23, 24 & Pin | |
| 23 | 530036404 | Piston Ring | Buy | |
| 24 | 530015162 | Retainer--Piston Pin | Buy | |
| 25 | 530069615 | Assy--Connecting Rod | Buy | |
| 26 | 530069616 | Gasket--Cylinder | Buy | |
| 27 | 530036145 | Spacer--Module | Buy | |
| 28 | 530055160 | Ignition Module | Buy | |
| 29 | 530015954 | Screw | Buy | |
| 30 | 530014662 | Assy--Ground Wire | Buy | |
| 31 | 530014663 | Assy--Leadwire | Buy | |
| 32 | 530056365 | Assy--Nose Cone Clamp | Incl. 33&34 | Buy |
| 33 | 530016381 | Screw--Nose Cone | Buy | |
| 34 | 530016382 | Nut--Nose Cone | Buy | |
| 35 | 530015810 | Screw | Buy | |
| 36 | 530071356 | Kit--Momentary | Buy | |
| 37 | 530027569 | Starter Handle | Buy | |
| 38 | 530069232 | Kit -- Rope | Buy | |
| 39 | 530016080 | Screw | Buy | |
| 40 | 530038604 | Coupling--Drive | Buy | |
| 41 | 530023817 | Starter Dog Spring | Buy | |
| 42 | 530015941 | Retain. Ring--C'shaft | Buy | |
| 43 | 530032124 | Outer Bearing | Buy | |
| 44 | 530019179 | C'case Seal | Buy | |
| 45 | 530015945 | Retainer Ring--C'case | Buy | |
| 46 | 530032125 | Inner Bearing | Buy | |
| 47 | 530069685 | Assy.--Fan Hsg/Shroud | Buy | |
| 48 | 530015934 | Screw | Buy | |
| 49 | 530015810 | Screw | Buy | |
| 50 | 530054536 | Guard--Muffler | Buy | |
| 51 | O--Ring--C'case/Shrd | |||
| 52 | 530054753 | Assy--Crankshaft | Buy | |
| 53 | 530012414 | Assy--Crankcase | Incl. 43-46 | |
| 54 | 530014729 | Assy--C'case & C'shaft | Incl. 42,52,53 | Buy |
| 55 | 530069886 | Assy--Flywheel | ||
| 56 | 530015828 | Washer--Flat | Buy | |
| 57 | 530015775 | Screw | Buy | |
| 58 | 530027523 | Retainer--Can | ||
| 59 | 530069400 | Kit--Starter Pulley | Incl. 39 | Buy |
| 60 | 530042085 | Starter Spring | ||
| 61 | 530069616 | Kit--Engine Gasket | Incl. 7,10,26,51 | |
| 62 | 530016379 | Retainer | ||
| 63 | 530014347 | Assy--Fuel Cap | Buy | |
| 64 | 530095646 | Assy--Fuel Pickup | Buy | |
| 65 | 530069247 | Kit--Fuel Line | Small | Buy |
| 66 | 530069216 | Kit--Fuel Line | Large | Buy |
| 67 | 530049296 | Assy--Fuel Tank | Incl. cap,fuel lines, filter | |
| 530035560 | Carburetor Adjustment Tool | Not Shown | Buy | |
| CP7826 | Compression Tester | Not Shown | Buy |
