FX25

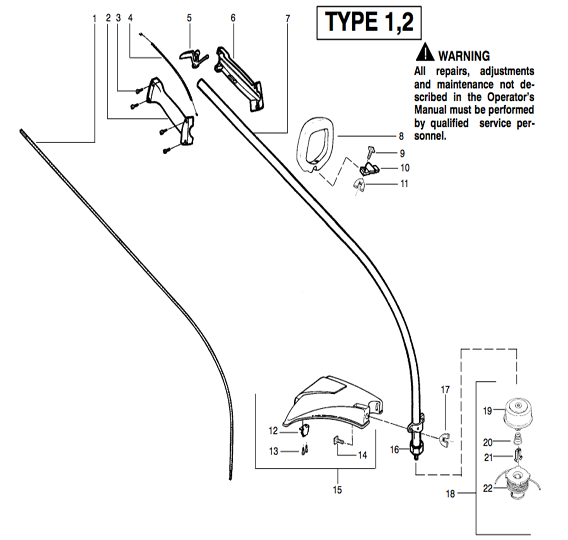

FX25 Parts
| # | Part # | FX25 Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530095803 | Shaft-Flex 50" | Buy | |
| 2 | 530038581 | Hsg.-Throttle (Right) | Buy | |
| 3 | 530016349 | Screw-Throttle Hsg. | Buy | |
| 4 | 530071548 | Kit-Throttle Cable | Buy | |
| 5 | 530038682 | Trigger | Buy | |
| 6 | 530038580 | Hsg.-Throttle (Left) | Buy | |
| 7 | 530071315 | Assy-Drive Shaft Hsg. | Buy | |
| 8 | 530071746 | Assembly-Handle-Assist | Buy | |
| 9 | 530015820 | Bolt | Buy | |
| 10 | 530038599 | Clamp-Handle | Buy | |
| 11 | 530091373 | Wingnut | Buy | |
| 12 | 530052287 | Line Limiter | Buy | |
| 13 | 530015966 | Screw | Buy | |
| 14 | 530015820 | Bolt | Buy | |
| 15 | 530069686 | Kit-Shield Assy | Incl. 12, 13, 14, 17 | Buy |
| 16 | 530095563 | Dust Cup | Buy | |
| 17 | 530091373 | Wingnut | Buy | |
| 18 | 952711621 | Accy. - Cutting Head Assembly | Incl. 19-22 | Buy |
| 19 | 530071306 | Kit-Hub Ass'y | Buy | |
| 20 | 530053241 | Spring - Return | Buy | |
| 21 | 530401957 | Retainer - Spool | Buy | |
| 22 | 952711616 | Accy. - Wound Spool | Buy | |
| 23 | 530163479 | Operator Manual | ||
| 24 | 530054864 | Decal-Starting Inst. | ||
| 25 | 530055350 | Decal - Shaft Warning |

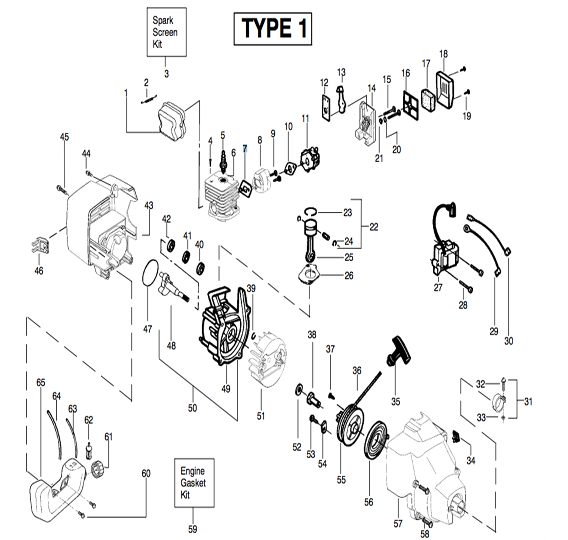

FX25 Engine Parts
| # | Part # | FX25 Engine Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530071396 | Kit - Muffler | Incl. 2 | Buy |
| 2 | 530042088 | Muffler Spring | Buy | |
| 3 | 530071391 | Screen Spark Arrestor | Buy | |
| 4 | 530015953 | Screw Cylinder | Buy | |
| 5 | 952030249 | Spark Plug (RCJ6Y) | Buy | |
| 6 | 530012416 | Kit - Cylinder | Buy | |
| 7 | 530071363 | Gasket-Cyl/Carb. | Buy | |
| 8 | 545030402 | Carburetor Adapter | Buy | |
| 9 | 530016014 | Screw | Buy | |
| 10 | 530071363 | Gasket-Cyl/Carb. | Buy | |
| 11 | 530071635 | Carburetor Assembly (Wt-631) | Buy | |
| 12 | 530038747 | Plate-Choke Mounting | Buy | |
| 13 | 530038686 | Shutter-Choke | Buy | |
| 14 | 530052431 | Box-Air | Buy | |
| 15 | 530016353 | Screw | Buy | |
| 16 | 530036569 | Plate-Filter Support | Buy | |
| 17 | 530036575 | Air Filter Foam | Buy | |
| 18 | 530036568 | Air Filter Cover | Buy | |
| 19 | 530016349 | Screw-Throttle Hsg. | Buy | |
| 20 | 530015852 | Spacer | Buy | |
| 21 | 530015254 | Wave Washer | Buy | |
| 22 | 530071833 | Kit- Piston | Incl. 23, 24 | Buy |
| 23 | 545154001 | Piston Ring | ||
| 24 | 530015162 | Wrist Pin Retainer | Buy | |
| 25 | 530049817 | Assembly - Connecting Rod | ||
| 26 | 530071363 | Gasket-Cyl/Carb. | Buy | |
| 27 | 530055160 | Module-Ignition | Buy | |
| 28 | 530016357 | Screw-Ignition Module | Buy | |
| 29 | 530014662 | Ground Wire | Buy | |
| 30 | 530014663 | Lead Wire | Buy | |
| 31 | 530056365 | Assembly-Nose Cone Clamp | Incls. 32 & 33 | Buy |
| 32 | 530016381 | Screw | Buy | |
| 33 | 530016382 | Nut 12 - 24 | Buy | |
| 34 | 530071356 | Kit-Momentary Switch | Buy | |
| 35 | 530027569 | Starter Handle | Buy | |
| 36 | 530069232 | Rope (3 ft.) | Buy | |
| 37 | 530016080 | Rope Retain Screw | Buy | |
| 38 | 530038604 | Coupling - Drive | Buy | |
| 39 | 530015941 | Retaining Ring | Buy | |
| 40 | 530055728 | Outer Bearing | Buy | |
| 41 | 530019264 | Seal - C'Case | Buy | |
| 42 | 530032125 | Inner Bearing | Buy | |
| 43 | 530056547 | Shroud We Green | Buy | |
| 44 | 530015934 | Screw | Buy | |
| 45 | 530015810 | Screw | Buy | |
| 46 | 530054536 | Guard-Muffler | Buy | |
| 47 | 530071363 | Gasket-Cyl/Carb. | Buy | |
| 48 | 530054753 | Assembly-Crankshaft | Buy | |
| 49 | 530071627 | Kit-Assembly-Crankcase | Incl. 40-42 | Buy |
| 50 | 530071624 | Kit-Assembly-C'Case & Crankshaft | Incl. 39, 48, 49 | Buy |
| 51 | 530054115 | Assembly - Flywheel | Buy | |
| 52 | 530015828 | Washer | Buy | |
| 53 | 530015775 | Screw | Buy | |
| 54 | 530027523 | Retainer | Buy | |
| 55 | 530069400 | Starter Pulley | Incl. 37 | Buy |
| 56 | 545008010 | Starter Spring | Buy | |
| 57 | 530071667 | Assy.-Fan Hsg | Buy | |
| 58 | 530015810 | Screw | Buy | |
| 59 | 530071363 | Gasket-Cyl/Carb. | Incl. 7, 10, 26, 47 | Buy |
| 60 | 530016379 | Retainer-Fuel Tank | Buy | |
| 61 | 530014347 | Fuel Cap (w/ retainer) | Buy | |
| 62 | 530095646 | Fuel Pick-up Ass'y. | Buy | |
| 63 | 530069247 | Kit - Line Carb/Purge | Buy | |
| 64 | 530069216 | Kit-Line Tank/Purge | Buy | |
| 65 | 545103802 | Fuel Tank Assembly | Buy |
