RT112

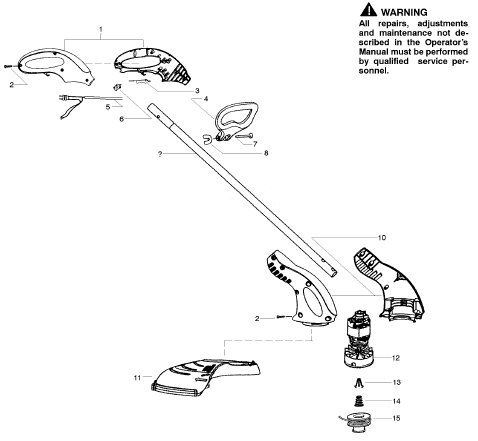

RT112 Parts
| # | Part # | RT112 Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530403945 | Assy-Handle Set | ||
| 2 | 530016120 | Screw | ||
| 3 | 530403818 | Trigger | ||
| 4 | 530403805 | Assist Handle | ||
| 5 | 530403908 | Assy-Wiring Harness | Incl. 6 | |
| 6 | 530402879 | Switch | ||
| 7 | 530403886 | Bolt-Carriage | ||
| 8 | 530016118 | Wingnut | ||
| 9 | 530404073 | Assy-Tube w/Decal | ||
| 10 | 530403946 | Housing Set | ||
| 11 | 530404076 | Shield Ass'y. | Incl. line limiter | |
| 12 | 530404110 | Motor/Hub Ass'y. | ||
| 13 | 530401957 | Retainer-Spool | ||
| 14 | 530401958 | Spring-Return | Buy | |
| 15 | 952701663 | Accy-Spool w/Line | Buy | |
| 545117526 | Operator Manual | Not Shown | ||
| 530404065 | Decal-Warning | Not Shown | ||
| 530404001 | Decal-Housing (right) | Not Shown | ||
| 530404002 | Decal-Housing (left) | Not Shown |
