RT112C

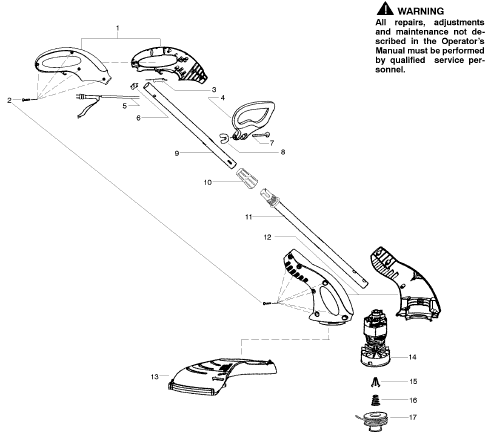

RT112C Parts
| # | Part # | RT112C Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530403945 | Assy-Handle Set | ||
| 2 | 530016120 | Screw | 10 pcs. | |
| 3 | 530403818 | Trigger | ||
| 4 | 530403996 | Assy-Handle Assist | Incl. 7,8 | |
| 5 | 545046201 | Assy-Wiring Harness | Incl. 6 | |
| 6 | 530402879 | Switch | ||
| 7 | 530403886 | Bolt-Carriage | ||
| 8 | 530016152 | Wingnut | ||
| 9 | 545088401 | Assy-Upper Tube | ||
| 10 | 545045101 | Nut-Collett | ||
| 11 | 545088501 | Assy-Lower Tube | ||
| 12 | 545076101 | Housing Set | ||
| 13 | 530404076 | Assy-Shield | Incl. line limiter | |
| 14 | 530402300 | Assy-Motor/Hub | ||
| 15 | 530401957 | Retainer-Spool | ||
| 16 | 530401958 | Spring-Return | Buy | |
| 952701663 | Accy-Spool w/Line | Not Shown | Buy | |
| 545117537 | Operator Manual | Not Shown | ||
| 545052901 | Decal-Warning | Not Shown |
