RTE113C

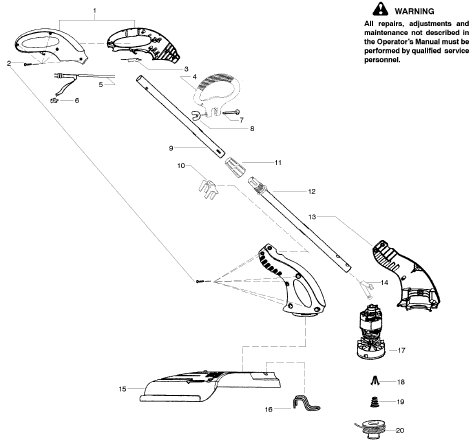

RTE113C Parts
| # | Part # | RTE113C Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 545077901 | Handle Set | ||
| 2 | 530016120 | Screw | 10 pcs. | |
| 3 | 530403818 | Trigger | ||
| 4 | 530403996 | Assy-Assist Handle | Incl. 7,8 | |
| 5 | 545090401 | Wire Harness | Incl. 6 | |
| 6 | 530402879 | Switch | ||
| 7 | 530403886 | Bolt-Carriage | ||
| 8 | 530016152 | Wingnut | ||
| 9 | 545088401 | Assy-Upper Tube | ||
| 10 | 530403820 | Button-Push | ||
| 11 | 545045101 | Nut-Collett | ||
| 12 | 545088302 | Assy-Lower Tube | ||
| 13 | 545126501 | Housing Set | ||
| 14 | 530403835 | Button-Snap | ||
| 15 | 530404076 | Shield Ass'y. | Incl. line limiter | |
| 16 | 530403845 | Guide - Edging | ||
| 17 | 530402300 | Assy.-Motor/Hub | ||
| 18 | 530401957 | Retainer-Spool | ||
| 19 | 530401958 | Spring-Return | Buy | |
| 20 | 952701663 | Accy-W/E Spool | TNG 5 | Buy |
| 545167695 | Operator Manual | Not Shown | ||
| 545127202 | Decal-Warning | Not Shown |
