SST25C

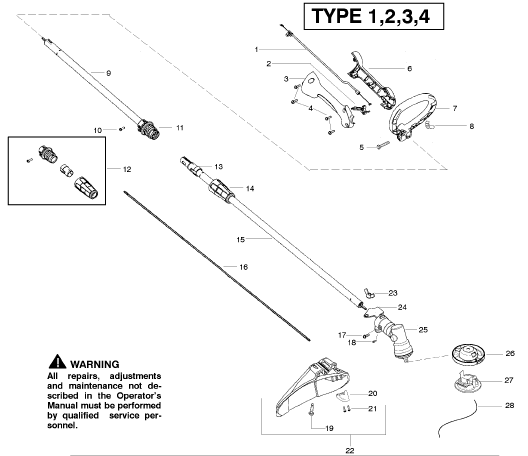

SST25C Parts
| # | Part # | SST25C Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530057991 | Assy-Throttle Cable | Buy | |
| 2 | 530058000 | Trigger | Buy | |
| 3 | 530057582 | Throttle Hsg. | Right | Buy |
| 4 | 530015880 | Screw-Throttle Hsg. | Buy | |
| 5 | 530015821 | Bolt-Handle/Shield | Buy | |
| 6 | 530057581 | Throttle Hsg. | Left | Buy |
| 7 | 530058580 | Assy-Handle Assist | Including 5,8 | |
| 8 | 530016152 | Wingnut | ||
| 9 | 545008059 | Kit-Shaft Upper | Including 10,11 | |
| 10 | 530015886 | Screw | Buy | |
| 11 | Collet | Ref. 12 | ||
| 12 | 545008057 | Kit-Coupler Shaft | Including 10,11,13,14 | |
| 13 | Collar-Shaft | Ref. 12 | ||
| 14 | Nut-Collet | Ref. 12 | ||
| 15 | 545008068 | Kit-Shaft Lower | Including 13,14 | |
| 16 | 545206701 | Shaft- Flex | ||
| 17 | 530016014 | Screw | Buy | |
| 18 | 530016224 | Screw- Alignment | Buy | |
| 19 | 530015820 | Bolt | Buy | |
| 20 | 530052285 | Line Limiter | Buy | |
| 21 | 530015966 | Screw-Line Limiter | Buy | |
| 22 | 530071771 | Kit-Shield Assy | Including 19,20,21,23 | Buy |
| 23 | 530016152 | Wingnut | ||
| 24 | 530096067 | Bracket-Shield | Buy | |
| 25 | 530096068 | Assy-Gearbox | Buy | |
| 26 | 545202401 | Head- Fixed Line | ||
| 27 | 545202501 | Cap- Fixed line | ||
| 28 | 545214501 | Line .095 round | 5 pcs | |
| 545207301 | Decal-Shaft Warning | Not Shown | ||
| 527291101 | Decal-Spark Arrestor Warning | Not Shown |

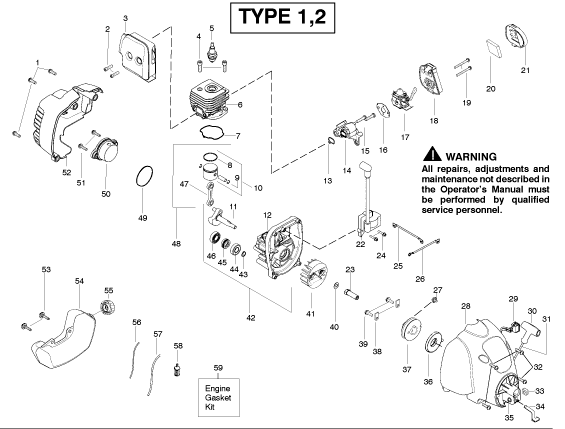

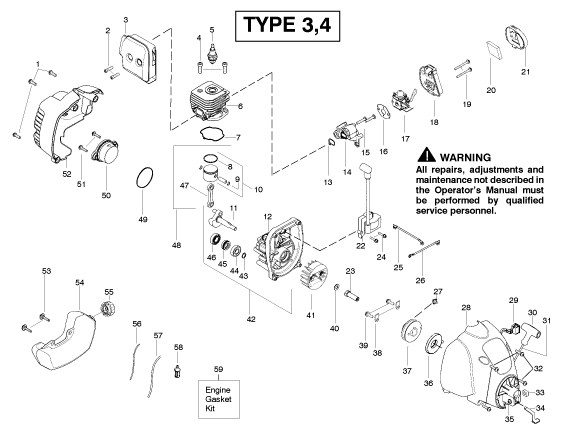

SST25C Engine Parts
| # | Part # | SST25C Engine Part Name | Note | Purchase |
|---|---|---|---|---|
| 1 | 530015814 | Screw | ||
| 2 | 530058982 | Bolt-Muffler | ||
| 3 | 530057863 | Assy-Muffler/Shield | including 2 | |
| 4 | 530015953 | Screw-Cylinder | ||
| 5 | 952030249 | Spark Plug | RCJ 6Y | Buy |
| 6 | 530012541 | Cylinder | ||
| 7 | 530071750 | Seal-Cylinder | kit | Buy |
| 8 | 530055120 | Piston Ring | ||
| 9 | 530015162 | Retainer-Piston Pin | ||
| 10 | 530071357 | Kit - Piston | including 8, 9 | |
| 11 | 530057829 | Assy-Crankshaft | ||
| 12 | 530012582 | Assy-Crankcase | including 44-46 | |
| 13 | 530071750 | Seal-Cyl | kit | Buy |
| 14 | 530057547 | Adapter-Carb. | ||
| 15 | 530016441 | Screw | ||
| 17 | 530071752 | Repair Kit-Carb. Zama C1U-W18 | RB-115 Kit | Buy |
| 17a. | 545081808 | Kit-Carb. Walbro WT-669 | K20-WAT Kit | Buy |
| 18 | 530057585 | Air Box | Buy | |
| 19 | 530016429 | Screw | Buy | |
| 20 | 530057781 | Foam-Air Filter | Buy | |
| 21 | 530057584 | Cover-Air Box | Buy | |
| 22 | 530039237 | Ignition Module | Buy | |
| 23 | 530038604 | Coupling-Drive | Buy | |
| 24 | 530016357 | Screw | Buy | |
| 25 | 530014663 | Assy-Leadwire | Buy | |
| 26 | 530014662 | Assy-Ground Wire | Buy | |
| 27 | 530016392 | Screw | Buy | |
| 28 | 530058600 | Assy.-Fan Hsg | Buy | |
| 29 | 545081869 | Kit-Switch | ||
| 30 | 530027569 | Handle-Starter | Buy | |
| 31 | 530071767 | Kit - Rope | Buy | |
| 32 | 530015810 | Screw | Buy | |
| 33 | 530016124 | Nut | Buy | |
| 34 | 530057588 | Clip-Spring | Buy | |
| 35 | 530016430 | Screw | Buy | |
| 36 | 530042085 | Spring-Starter | Buy | |
| 37 | 530071786 | Kit-Pulley-Starter | Buy | |
| 38 | 530027523 | Retainer-Pulley | Buy | |
| 39 | 530015775 | Screw | Buy | |
| 40 | 530015828 | Washer-Flat | Buy | |
| 41 | 530054115 | Assy-Flywheel | Buy | |
| 42 | 530071768 | Assy-C'case & C'shaft | including 11,12,43 | Buy |
| 43 | 530015941 | Retain. Ring-C'shaft | Buy | |
| 44 | 530055728 | Outer Bearing | Buy | |
| 45 | 530019264 | Seal-C'case | Buy | |
| 46 | 530032125 | Inner Bearing | Buy | |
| 47 | 530069945 | Assy-Connecting Rod | Buy | |
| 48 | 530071785 | Kit-Piston/Rod | Buy | |
| 49 | 530071750 | O-Ring-C'case | kit | Buy |
| 50 | 530057954 | Assy-Plug | including 48 | Buy |
| 51 | 530016386 | Screw | Buy | |
| 52 | 545011004 | Shroud-Rear | ||
| 53 | 530016445 | Retainer-Tank | Buy | |
| 54 | 545104102 | Assy-Fuel Tank | including filter, lines & fuel cap | |
| 55 | 530014347 | Assy-Fuel Cap | Buy | |
| 56 | 530069247 | Kit-Fuel Line | small | Buy |
| 57 | 530069216 | Kit-Fuel Line | large | Buy |
| 58 | 530095646 | Assy-Fuel Pickup | Buy | |
| 59 | 530071750 | Kit-Engine Gasket | including 7,13,16,48 | Buy |
| 530057827 | Choke Lever - Zama | Not on picture | Buy | |
| 530058662 | Choke Lever - Walbro | Not on picture | ||
| 530058709 | Bulb-Purge - Zama | Not on picture | Buy | |
| 530035497 | Bulb-Purge - Walbro | Not on picture | Buy | |
| 530035560 | Carburetor Adjustment Tool | Not on picture | Buy | |
| CP7826 | Compression Tester | Not on picture | Buy |
