Weedeater 1200

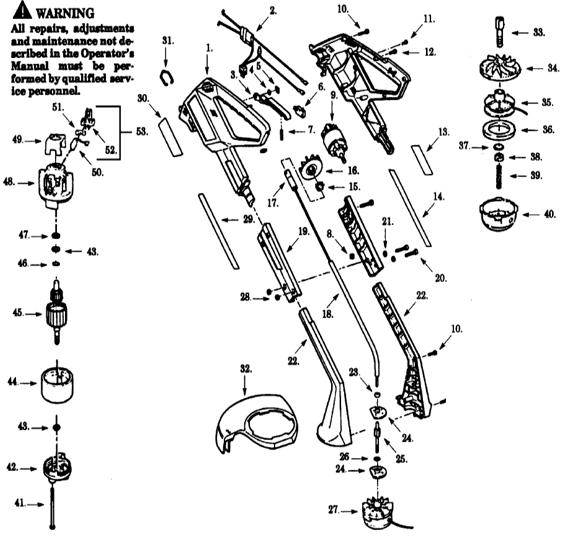

Weedeater 1200 Parts

1200

#Part #Weedeater 1200 Part NameNote
1534787902Motor Hsg. Set
2534789301Harness
3534788305Trigger
4534228802Washer
5534790800Push Nut
6534789000Switch
7534790700Trigger Spring
8534808100Square Nut
9534768301Motor Assembly
10534222400Screw
11534731402Screw
12534222402Screw
13534798700Warning Label
14534845900Logo Label (L) (Not a serviceable part)
14534789600Logo Label (L) (Model 1000)
15534560103Fan Clamp
16534526802Fan
17534788505Flex Shaft Assembly
18534788902Sleeve Tubing
19534788102Housing Clamp
20534799500Screw
21534828701Washer
22534788005Spindle Housing
23534636002Washer
24534790600Bearing Holder Disk
25534789901Shaft Adapter
26534228802Washer
27534167011Model PT1000-01,PT1200-01,PT1000-01A
27534167011Model PT1000-01,PT1200-01,PT1000-01A
28534790500Nut
29534846000Logo Label (R) (Model 1200) (Not a serviceable part)
29534789400Logo Label (R) (Model 1000)
30534847900Nameplate Label (Model 1200)
30534799400Nameplate Label (Model 1000)
31534270100Hanger Bracket
32534846101Guard Assembly
32534790200Guard Assembly
33534787800Shaft Adapter
34534167215Rear Plate
35534167815PT1200-00
35534167805Spool & Line
36534167701Foam Pad
37534316200O-Ring
38534166700Adapter Nut
39534819200Spring
40534167935Hub Assembly
41534228703Screw
42534207101Endbell Assembly (Drive)
43534228800Washer
44534227004Field Assembly
45534767701Armature Assembly
46534246700Retaining Ring
47534238903Washer
48534227501Endbell Assembly (Brush)
49534226000Insulator
50534227800Carbon Brush
51534228000Spring Brush
52534227700Brush Holder
53534450400Brush Kit
