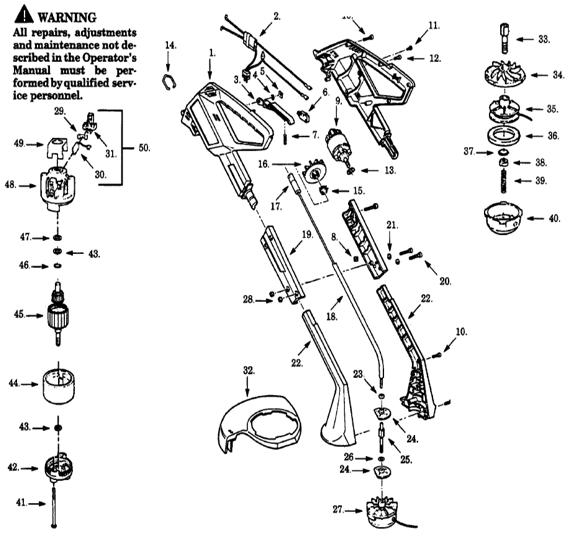

Weedeater 1200C

#	Part #	Weedeater 1200C Part Name
1	534787902	Motor Hsg. Set
2	534789301	Harness
3	534788305	Trigger
4	534228802	Washer
5	534790800	Push Nut
6	534789000	Switch
7	534790700	Trigger Spring
8	534808100	Square Nut
9	534768301	Motor Assembly
10	534222400	Screw
11	534731402	Screw
12	534222402	Screw
13	534757900	Washer
14	534270100	Hanger Bracket
15	534560103	Fan Clamp
16	534526802	Fan
17	534788505	Flex Shaft Assembly
18	534788902	Sleeve Tubing
19	534788102	Housing Clamp
20	534799500	Screw
21	534828701	Washer
22	534788005	Spindle Housing
23	534636002	Washer
24	534790600	Bearing Holder Disk
25	534789901	Shaft Adapter
26	534228802	Washer
27	534167011	Model PT1000-01,PT1200-01,PT1000-01A
27	534167011	Model PT1000-01,PT1200-01,PT1000-01A
28	534790500	Nut
29	534228000	Spring Brush
30	534227800	Carbon Brush
31	534227700	Brush Holder
32	534846101	Guard Assembly
32	534790200	Guard Assembly
33	534787800	Shaft Adapter
34	534167215	Rear Plate
35	952710512	Spool & Line
35	952710514	Spool & Line
36	534167701	Foam Pad
37	534316200	O-Ring
38	534166700	Adapter Nut
39	534819200	Spring
40	534167935	Hub Assembly
41	534228703	Screw
42	534207101	Endbell Assembly (Drive)
43	534228800	Washer
44	534227004	Field Assembly
45	534767701	Armature Assembly
46	534246700	Retaining Ring
47	534238903	Washer
48	534227501	Endbell Assembly (Brush)
49	534226000	Insulator
50	534450400	Brush Kit
