Weedeater 1209

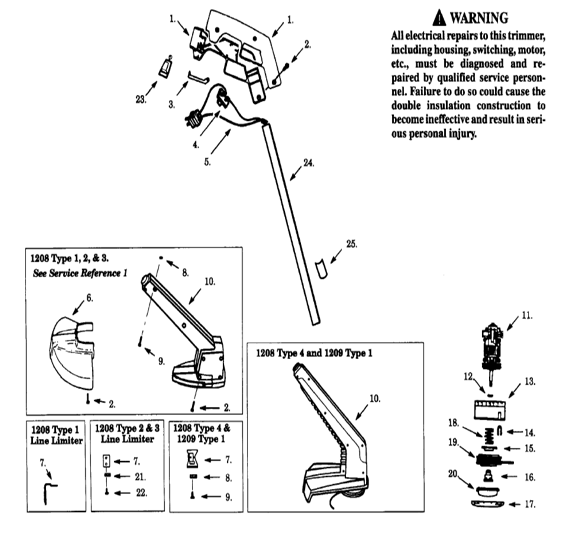

Weedeater 1209 Parts
| # | Part # | Weedeater 1209 Part Name | Note |
|---|---|---|---|
| 1 | 530402060 | Upper Handle Set | |
| 2 | 530352036 | Screw | |
| 3 | 530347654 | Trigger | |
| 4 | 530347897 | On/Off Switch | |
| 5 | 530401656 | Wiring Harness | (Incl. 4) |
| 6 | 530351803 | Shield | |
| 7 | 534938002 | Blade/Bracket Ass'y. | |
| 7 | 534958001 | Line Cutter | |
| 7 | 530351802 | Line Limiter | |
| 7 | 530350362 | Line Limiter | |
| 8 | 534790500 | Nut | |
| 9 | 530348050 | Screw | |
| 10 | 530036713 | Motor Housing Set | |
| 10 | 530400113 | Motor Housing Set | |
| 10 | 530351808 | Motor Housing Set | |
| 11 | 530400772 | Motor Ass'y. | |
| 11 | 530347695 | Motor Assembly | |
| 12 | 530001717 | Coupling Washer | |
| 13 | 530400008 | Hub | |
| 14 | 530340594 | Line Saver | |
| 15 | 530340732 | Spring Cap | |
| 16 | 530350366 | Drive Gear Ass'y. | |
| 17 | 530400007 | Cover | |
| 18 | 530340006 | Spring | |
| 19 | 952701521 | Spool w/Line | (Incl. Line) |
| 20 | 530400009 | Tap Button | |
| 21 | 530351801 | Blade Cover | |
| 22 | 530351800 | Screw | |
| 23 | 530347653 | Cord Retainer | |
| 24 | 530400270 | Tube w/decal | |
| 25 | 530400274 | Warning Decal |
