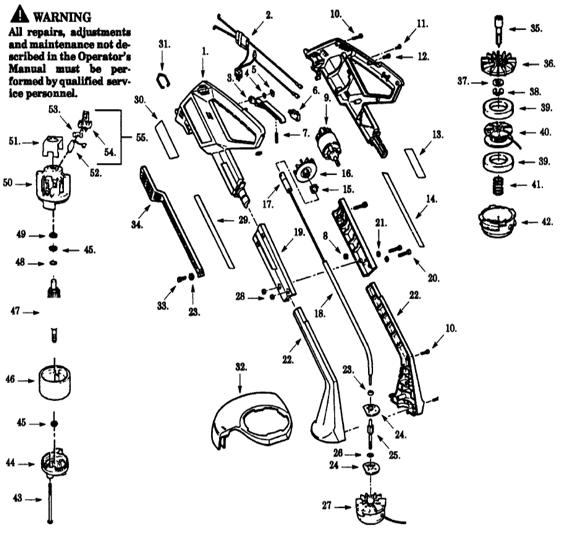

Weedeater 1400

#	Part #	Weedeater 1400 Electric Part Name
1	534787902	Motor Hsg. Set
2	534789301	Harness
3	534788305	Trigger
4	534228802	Washer
5	534790800	Push Nut
6	534789000	Switch
7	534790700	Trigger Spring
8	534808100	Square Nut
9	534768301	Motor Assembly
10	534222400	Screw
11	534731402	Screw
12	534222402	Screw
13	534798700	Warning Label
14	534789600	Logo Label (L) (Model 1000)
15	534560103	Fan Clamp
16	534526802	Fan
17	534788505	Flex Shaft Assembly
18	534788902	Sleeve Tubing
19	534788102	Housing Clamp
20	534799500	Screw
21	534228805	Washer
22	534788005	Spindle Housing
23	534636002	Washer
24	534790600	Bearing Holder Disk
25	534789900	Shaft Adapter
26	534228802	Washer
27	534631865	Cutting Head Assembly
28	534790500	Nut
29	534798500	Logo Label ®
30	534798800	Nameplate Label (Not a serviceable part)
31	534270100	Hanger Bracket
32	534790400	Guard Assembly
33	534808200	Screw
34	534788405	Assist Handle
35	534589900	Drive Adapter
36	534487115	Rear Plate
37	534220146	Washer
38	534246703	Retaining Ring
39	534158602	Foam Pad
40	534486815	Spool & Line
41	534157401	Spring
42	534486465	Hub Assembly
43	534228703	Screw
44	534207101	Endbell Assembly (Drive)
45	534228800	Washer
46	534227004	Field Assembly
47	534767701	Armature Assembly
48	534246700	Retaining Ring
49	534238903	Washer
50	534227501	Endbell Assembly (Brush)
51	534226000	Insulator
52	534227800	Carbon Brush
53	534228000	Spring Brush
54	534227700	Brush Holder
55	534450400	Brush Kit
