Weedeater 1500

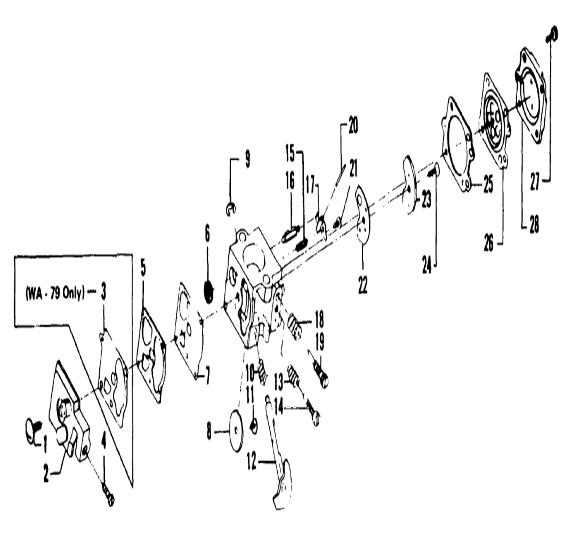

Weedeater 1500 Carburetor Parts
| # | Part # | Weedeater 1500 CarburetorPart Name | Note |
|---|---|---|---|
| 1 | 530035017 | Screw - Pump Cover | |
| 9 | 530035007 | Clip - Throttle Shaft | |
| 11 | 530035015 | Screw-Throttle Valve | Contents in Kwik Kit # 35144 or # 35185. |
| 13 | 530035023 | Spring - Idle Needle | |
| 16 | 530035106 | Valve-Inlet Needle | Contents in Kwik Kit # 35144 or # 35185. |
| 17 | 530035030 | Offset Bracket | Contents in Kwik Kit # 35144 or # 35185. |
| 18 | 530035036 | Spring - Hi Speed Needle | |
| 20 | 530035028 | Pin - Metering Lever | Contents in Kwik Kit # 35144 or # 35185. |
| 21 | 530035016 | Screw - Metering Lever Pin | |
| 25 | 530035151 | Gasket-Metering Diaphragm | Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185. |
| 26 | 530035014 | Diaphragm Assembly - Metering | Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185. |
| A | 530035185 | Screen-Starter | WA-149 # 530035183 |

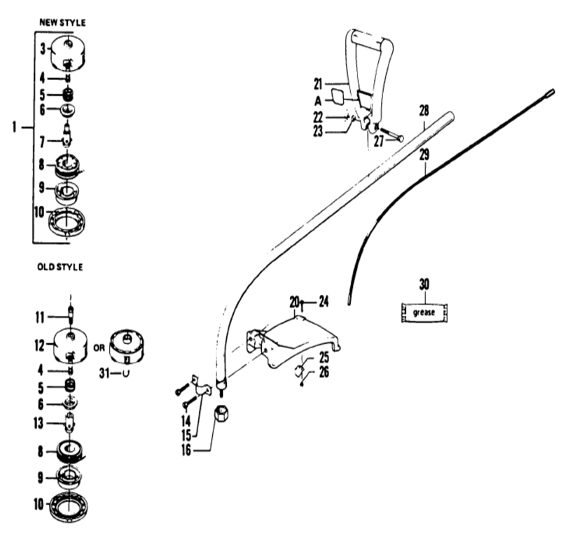

Weedeater 1500 Parts
| # | Part # | Weedeater 1500 Part Name | Note |
|---|---|---|---|
| 1 | 93894 | Cutting Head Ass'y | |
| 15 | UP04261 | Switch- Toggle | |
| 20 | 94441 | Shield | |
| 24 | 530015337 | Screw | |
| 29 | A00440 | Screw-Adjusting Fil Hd. , 8-32 X 7/8 | |
| 30 | 30102 | Flex Shaft Lube |

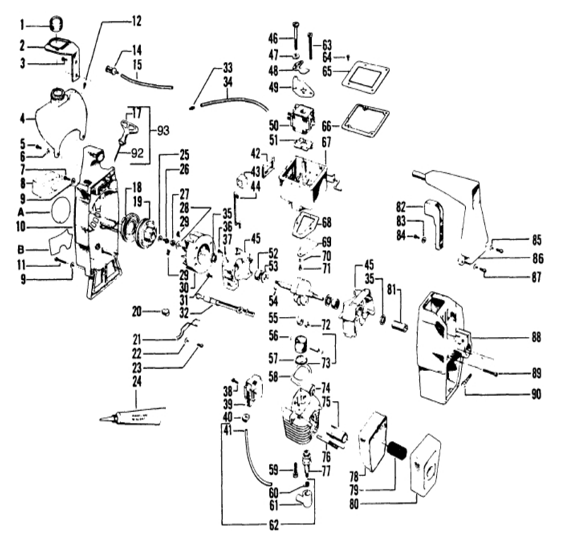

Weedeater 1500 Engine Parts
| # | Part # | Weedeater 1500 Engine Part Name | Note |
|---|---|---|---|
| 1 | 165772 | Tine, Inner, R.H. | Incl #91 |
| 4 | 530010771 | Fuel Tank Ass'y. | Incl. # 1, 4, 12, & 16 |
| 5 | 530015509 | Screw | |
| 7 | 15168 | Screw-10-24 x 5/8 Fit. Hd. Cylinder Shield to Crankcase | |
| 9 | 530015274 | Washer - Plain Type "B" | |
| 11 | 530015305 | Screw - 10 - 24 X 1-3/16" - Fil. Hd. | |
| 14 | 91878 | Fuel Pick-Up Assembly | |
| 18 | 42067 | Starter - Recoil Spring | |
| 22 | 530015382 | Washer | |
| 23 | 530015407 | Screw | |
| 24 | 530030054 | Crankcase Sealant | |
| 25 | 530015123 | Washer | |
| 26 | 530015479 | Screw | |
| 28 | 42059 | Spring - Starter Dog | |
| 29 | 530015127 | Flywheel Washer | |
| 31 | 15168 | Screw-10-24 x 5/8 Fit. Hd. Cylinder Shield to Crankcase | |
| 36 | 530015004 | Screw | |
| 39 | 69181 | Ignition Module | |
| 43 | 530023373 | Throttle Wire Boot | |
| 46 | 530015404 | Screw - 10 - 24 X 2-1/8" - Fil. Hd. - Carburetor Shoulder | |
| 47 | 530015254 | Wave Washer | |
| 53 | 530015351 | Washer | |
| 54 | 530015126 | Flywheel Key | |
| 56 | 530015162 | Wrist Pin Retainer | |
| 59 | 530015239 | Screw | |
| 60 | 507475326 | Spark Plug Boot | |
| 61 | 530003934 | Spark Plug Boot | |
| 62 | 502271102 | High Tension Lead Assembly | Incl. # 41, 60 & 61 |
| 63 | 530015379 | Screw - 10 - 24 X 1-7/8" - Fil. Hd. - Carburetor | |
| 67 | 11350 | Carburetor Case Assembly | |
| 72 | 34855 | Ring Set | |
| 77 | 30-758 | Spark Plug (RCJ-8) | |
| 82 | 25342 | Trigger - Throttle | |
| 83 | 530015382 | Washer | |
| 84 | 530015407 | Screw | |
| 85 | 530015274 | Washer - Plain Type "B" | |
| 89 | 15376 | Screw - Shroud (Bottom) - # 10 - 24 x 1-1/2 Fil. | |
| 92 | 22290 | Rope (3 1/2 Ft.) |
