Weedeater 2620

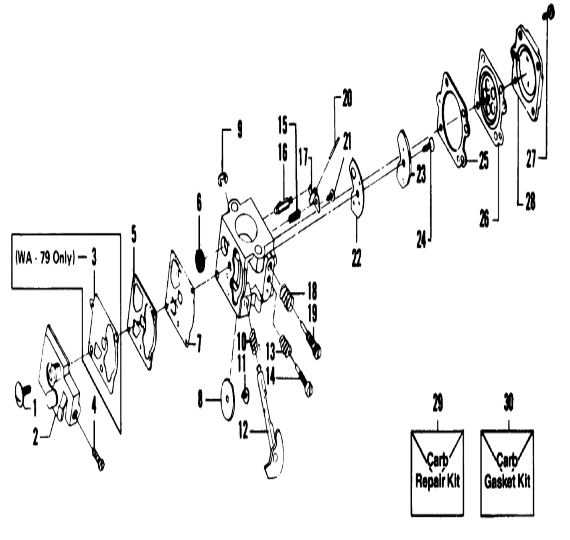

Weedeater 2620 Carburetor Parts
| # | Part # | Weedeater 2620 Carburetor Part Name | Note |
|---|---|---|---|
| 1 | 530035017 | Screw - Pump Cover | |
| 2 | 530035154 | Pump Cover Assembly | WA - 79 |
| 2 | 530035191 | Cover Fuel Pump | WA - 149 # 35183 |
| 3 | 530035135 | Diaphragm Fuel Pump | |
| 4 | 530035156 | Idle Speed Screw | |
| 5 | 530035009 | Gasket-Fuel Pump | WA - 79 |
| 5 | 530035164 | Gasket-Fuel Pump | WA - 149 # 35183 |
| 6 | 530035178 | Screen-Fuel Inlet | Included in Carburetor Kwik Repair Kit. |
| 7 | 530035152 | Diaphragm - Pump | WA-79 |
| 7 | 530035166 | Diaphragm-Fuel Pump | WA-149 # 35183 |
| 8 | 530035133 | Valve - Throttle | |
| 9 | 530035007 | Ring-Throttle Retainer | |
| 10 | 530035138 | Spring---Throttle Return | |
| 11 | 530035015 | Screw-Throttle Valve | Included in Carburetor Kwik Repair Kit. |
| 12 | 530035132 | Shaft Assembly-Throttle | |
| 13 | 530035023 | Idle Needle Spring | |
| 14 | 530035141 | Idle Needle | |
| 15 | 530035139 | Spring-Metering Lever | Included in Carburetor Kwik Repair Kit. |
| 16 | 530035106 | Valve-Inlet Needle | Included in Carburetor Kwik Repair Kit. |
| 17 | 530035031 | Lever-Metering | Included in Carburetor Kwik Repair Kit. |
| 18 | 530035036 | Spring-High Speed Needle | |
| 19 | 530035142 | Hi Speed Needle | |
| 20 | 530035028 | Pin - Metering Lever | |
| 21 | 530035016 | Screw - Metering Lever Pin | |
| 22 | 530035147 | Circuit Plate Gasket | |
| 23 | 530035042 | Plate-Circuit | |
| 24 | 530035137 | Screw-Circuit Plate | Included in Carburetor Kwik Repair Kit. |
| 25 | 530035151 | Gasket-Metering Diaphragm | |
| 26 | 530035014 | Diaphragm-Metering | |
| 27 | 530035153 | Screw - Assembly - Metering Cover & Throttle Shaft Clip | |
| 28 | 530035149 | Cover - Metering Diaphragm | |
| 29 | 530035144 | Kit Carb - Kwik Repair Kit | WA - 79 |
| 29 | 530035185 | Carb. Gasket/Diaphragm Kit | WA - 149 #35183 |
| 30 | 530035145 | Kit Carb - Gasket/Diaphragm | WA - 79 |

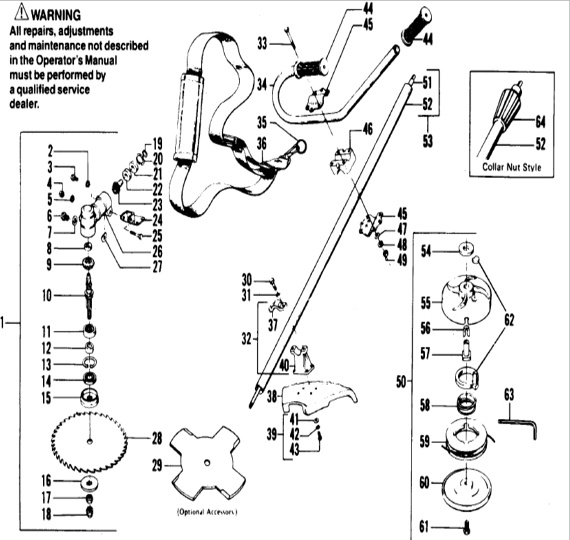

Weedeater 2620 Parts
| # | Part # | Weedeater 2620 Part Name | Note |
|---|---|---|---|
| 1 | 530093744 | Gear Box Ass'y w/fasteners | Incl. 2-27 |
| 2 | 530091578 | Lock Washer, Housing Bolt | |
| 3 | 530091579 | Bolt | |
| 4 | 530093703 | Nut - 6mm - Housing (Gear Box) | |
| 5 | 530091578 | Lock Washer, Housing Bolt | |
| 6 | 530091581 | Oil Hole Plug | |
| 7 | 530091582 | Washer | |
| 8 | 530091586 | Bearing, Gear Box | |
| 9 | 530091587 | Gear, Bevel | |
| 10 | 530091588 | Shaft | |
| 11 | 530091598 | Ball Bearing | |
| 12 | 530091591 | Collar, Shaft | |
| 13 | 530091592 | Snap Ring | |
| 14 | 530091589 | Oil Seal | |
| 15 | 530092143 | Blade Adaptor | |
| 16 | 530091594 | Gear Housing Lower Plate | |
| 17 | 530091595 | Nut, Plate | |
| 18 | 530091596 | Cap-Nut | |
| 19 | 530091573 | Snap Ring, Gear Housing | |
| 20 | 530091574 | Snap Ring, Gear Housing Bearing | |
| 21 | 530091575 | Bearing, Pinion Gear | |
| 22 | 530092329 | Bearing - Open | |
| 23 | 530091576 | Pinion, Gear | |
| 24 | 530093706 | Bracket Shield/Gear Box | |
| 25 | 530093704 | Bolt, Gear Box - 6mm x 34mm | |
| 26 | 530091585 | Housing, Gear Box | |
| 27 | 530091584 | Fiber-Filler Washer | |
| 28 | 952701547 | 10" Brush Blade | |
| 29 | 952701546 | Weed Blade | |
| 30 | 530091616 | Bolt | |
| 31 | 530091615 | Washer | |
| 32 | 530091569 | Shield Mounting Bracket Assembly | Incl. 37 & 40 |
| 33 | 530015405 | Bolt - #1/4 - 20x2" Hex | |
| 34 | 530093169 | Handlebar | |
| 35 | 530092231 | "O" Ring | |
| 36 | 530094417 | Shoulder Strap | |
| 37 | 530091613 | Shield Mounting Bracket Top | |
| 38 | 530093743 | Shield | |
| 39 | 530091572 | Shield Mounting Kit | Incl. 41, 42, 43 - 4 each |
| 40 | 530091614 | Shield Mounting Bracket Bottom | |
| 42 | 530091623 | Washer, Lock | |
| 43 | 530093705 | Screw-Shield Mounti | |
| 44 | 530092086 | Handlebar Grip | |
| 45 | 530092079 | Clamp - Handlebar | |
| 46 | 530092084 | Block, Clamp | |
| 47 | 530092062 | Washer - Cylinder Cover | |
| 48 | 530001642 | Lockwasher | |
| 49 | 530015197 | Nut | |
| 50 | 952701555 | Cutting Head Ass'y, | Incl. 54-63 |
| 51 | 530093087 | Drive Shaft | |
| 52 | 530092113 | Drive Shaft Assy. | |
| 52 | 530093088 | Pinch Clamp Style | |
| 53 | 530092363 | 48" Drive Shaft Housing and Ass'y | |
| 54 | 530091664 | Spacer | |
| 55 | 530091656 | Hub | |
| 56 | 530091425 | Line Saver | |
| 57 | 530091423 | Drive Adapter | |
| 58 | 530091657 | Spring | |
| 59 | 952711515 | Spool w/Line | |
| 60 | 530091424 | Cover, Cutting Head | |
| 61 | 530091662 | Cover Screw | |
| 62 | 530093602 | Button & Ring Ass'y | |
| 63 | 530091663 | Allen Wrench - Cutting Head | |
| 64 | 530011726 | Collar Nut | |
| B | 530064696 | Operator's Manual |

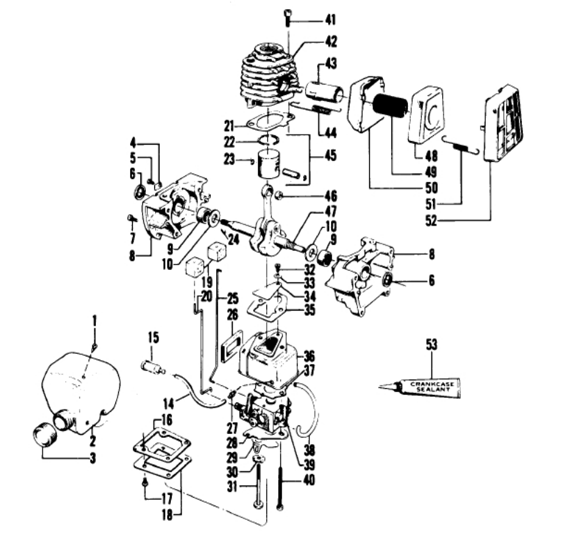

Weedeater 2620 Engine Parts
| # | Part # | Weedeater 2620 Engine Part Name | Note |
|---|---|---|---|
| 1 | 530026119 | Check Valve | |
| 2 | 530010776 | Fuel Tank Assembly | Incl. #1, 3, 14 & 15 |
| 3 | 530014347 | Fuel Cap (w/ retainer) | |
| 4 | 530023661 | Clamp - Module Lead | |
| 5 | 530015004 | Screw | |
| 6 | 530019059 | Crankcase Seal | |
| 7 | 530015369 | Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger | |
| 8 | 530010316 | Crankcase Assembly | Incl. 6, 9 & Qty 4 of 7 |
| 9 | 530032029 | Crankshaft Bearing | |
| 10 | 530015351 | Washer | |
| 15 | 530091878 | Fuel Filter Assembly | |
| 16 | 530019112 | Gasket - Carburetor Case Cover | |
| 17 | 530015235 | Screw | |
| 19 | 530023373 | Throttle Wire Boot | |
| 21 | 530069219 | Engine Gasket Kit | |
| 22 | 530024929 | Model 1800, Piston Ring | |
| 23 | 530015162 | Wrist Pin Retainer | |
| 24 | 530015126 | Flywheel Key | |
| 25 | 530024902 | Throttle Wire | |
| 26 | 530019105 | Carburetor Case Seal | |
| 27 | 530025472 | Fuel Line Fitting | |
| 29 | 530024558 | Choke Shutter | |
| 30 | 530015254 | Wave Washer | |
| 31 | 530015404 | Screw - 10 - 24 X 2-1/8" - Fil. Hd. - Carburetor Shoulder | |
| 32 | 530015241 | Screw | |
| 33 | 530023367 | Washer | |
| 34 | 530024438 | Reed Valve | |
| 35 | 530019108 | Carburetor Case to Crankcase Gasket | |
| 36 | 530024409 | Plastic Housing | |
| 37 | 530019157 | Carburetor Gasket | |
| 38 | 530069571 | Return Line | |
| 39 | 530035183 | Carburetor | WA-149A |
| 40 | 530015379 | Screw - 10 - 24 X 1-7/8" - Fil. Hd. - Carburetor | |
| 41 | 530015239 | Screw | |
| 42 | 530012191 | Cylinder (28.0CC) | |
| 43 | 530026949 | Diffuser-Muffler | |
| 44 | 530036409 | Muffler Attachment Spring | |
| 46 | 530032057 | Bearing - Wrist Pin | |
| 47 | 530026675 | Assy-C'Shaft & Rod | |
| 48 | 530024361 | Cover - Muffler | |
| 49 | 530024364 | Screen - Spark Arresting | |
| 50 | 530024362 | Body - Muffler | |
| 51 | 530024932 | Spring - Muffler Guard | |
| 52 | 530024855 | Guard - Muffler | |
| 53 | 530030054 | Crankcase Sealant |
| # | Part # | Weedeater 2620 Engine Part Name | Note |
|---|---|---|---|
| 2 | 530069178 | Fan Housing | Incl. 14, 16, 17, 18 |
| 3 | 530015583 | Screw-10-24 X 1-1/2 | |
| 4 | 530024371 | Air Filter | |
| 5 | 530015369 | Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger | |
| 6 | 530024436 | Bumper - Fuel Tank Housing | |
| 7 | 530024656 | Handle And Fuel Tank Housing | |
| 8 | 530002582 | Grounding Switch Nut | |
| 9 | 530015247 | Screw | |
| 10 | 530024665 | Handle Cover | |
| 11 | 530069182 | Kit-Grounding Switc | Incl. #8, 29, 44, 45 |
| 12 | 530024365 | Trigger - Throttle | |
| 14 | 530026035 | Baffle-Air | |
| 16 | 530015373 | Screw - #10 x 1/4" | |
| 17 | 530015305 | Screw - 10 - 24 X 1-3/16" - Fil. Hd. | |
| 18 | 530026122 | Spacer | |
| 19 | 530015123 | Washer | |
| 20 | 530016141 | Screw-Gear Box/Shield | |
| 21 | 530626605 | Flywheel Nut | |
| 22 | 530023817 | Starter Dog Spring | |
| 23 | 530015127 | Flywheel Washer | |
| 24 | 530039114 | Flywheel Assembly | |
| 25 | 530024461 | Trigger Spring | |
| 26 | 530015814 | Screw | |
| 27 | 502271102 | High Tension Lead Assembly | Incl. 35, 36, 37 |
| 28 | 530024435 | Plug Wire Grommet | |
| 29 | 530025995 | Tab-45 Degree Electrical | |
| 30 | 530015816 | Screw | |
| 31 | 530069181 | Kit - Ignition Module | |
| 32 | 530024303 | Knob - Choke | |
| 33 | 530069196 | Kit - Clutch Washer (3/8" Flat) | |
| 34 | 530069195 | Kit-Clutch Assy | |
| 35 | 530039082 | High Tension Lead Wire | |
| 36 | 530003934 | Spark Plug Boot | |
| 37 | 507475326 | Spark Plug Boot | |
| 38 | 530030077 | Spark Plug | |
| 39 | 530010902 | Assy-Drum & Couplin | |
| 40 | 530011742 | Collar Nut Style | |
| 40 | 530011799 | Shroud | |
| 41 | 530015583 | Screw-10-24 X 1-1/2 | |
| 42 | 530093802 | Bolt - Pinch Clamp | |
| D | 506093802 | Actuator | |
| 43 | 530015369 | Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger | |
| 44 | 530024569 | Washer | |
| 45 | 530039122 | Lead Wire-Ground |
