Weedeater 409

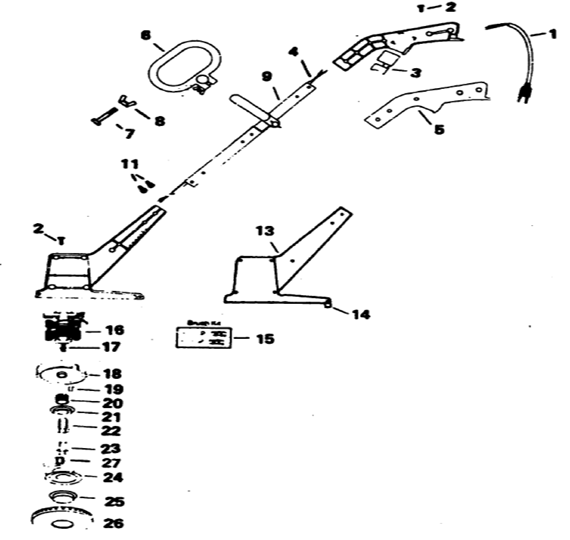

Weedeater 409 Parts
| # | Part # | Weedeater 409 Part Name | Note |
|---|---|---|---|
| 1 | 534234502 | POWER CORD PIGTAIL | |
| 2 | 530090827 | Screw - #8 - 11 x 3/4" Pan Hd. Plastite | |
| 4 | 530093614 | HARNESS | |
| 5 | 530093618 | TRIGGER HANDLE (SET ONLY) | |
| 6 | 530322295 | Assist Handle | |
| 7 | 530093617 | BOLT | |
| 8 | 530092049 | Wing Nut | |
| 9 | 530093615 | TUBE | |
| 11 | 530090876 | CONNECTOR | |
| 13 | 530092629 | MOTOR HOUSING SET | |
| 14 | 530090874 | TAIL INTERFERENCE BLADE | |
| 15 | 530090891 | BRUSH KIT | |
| 16 | 530090892 | MOTOR ASSEMBLY | |
| 17 | 530340150 | Washer | |
| 18 | 530344329 | Hub | |
| 19 | 530340594 | Line Saver | |
| 20 | 530340006 | Spring | |
| 21 | 530340732 | Spring Cap | |
| 22 | 530340590 | Drive Gear | |
| 23 | 530340731 | Insert | |
| 24 | 952701521 | Spool w/Line | |
| 27 | 530093196 | DRIVE ADAPTOR INSERT |
