Weedeater 5500

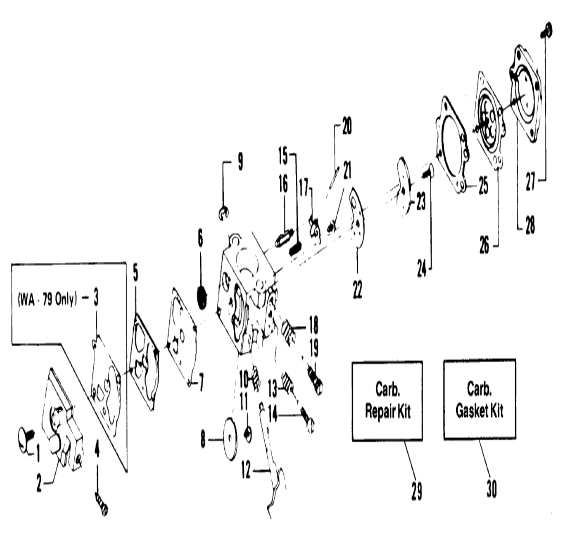

Weedeater 5500 Carburetor Parts
| # | Part # | Weedeater 5500 Carburetor Part Name | Note |
|---|---|---|---|
| 1 | 530035017 | Screw - Pump Cover | |
| 2 | 530035154 | Pump Cover Assembly | WA-79 |
| 2 | 530035191 | Cover Fuel Pump | WA-149 #35183 |
| 3 | 530035135 | Diaphragm Fuel Pump | WA-79 |
| 4 | 530035156 | Idle Speed Screw | |
| 5 | 530035009 | Gasket-Fuel Pump | WA-79 |
| A | 530035164 | Gasket-Fuel Pump | WA-149 #35183 |
| 6 | 530035178 | Screen-Fuel Inlet | Included in Carburetor Kwik Repair Kit. |
| 7 | 530035152 | Diaphragm - Pump | WA-79 |
| 7 | 530035166 | Diaphragm-Fuel Pump | WA-149 #35183 |
| 8 | 530035133 | Valve - Throttle | |
| 9 | 530035007 | Ring-Throttle Retainer | |
| 10 | 530035138 | Spring---Throttle Return | |
| 11 | 530035015 | Screw-Throttle Valve | Included in Carburetor Kwik Repair Kit. |
| 12 | 530035132 | Shaft Assembly-Throttle | |
| 13 | 530035023 | Idle Needle Spring | |
| 14 | 530035141 | Idle Needle | |
| 15 | 530035139 | Spring-Metering Lever | Included in Carburetor Kwik Repair Kit. |
| 16 | 530035106 | Valve-Inlet Needle | Included in Carburetor Kwik Repair Kit. |
| 17 | 530035031 | Lever-Metering | Included in Carburetor Kwik Repair Kit. |
| 18 | 530035036 | Spring-High Speed Needle | |
| 19 | 530035142 | Hi Speed Needle | |
| 20 | 530035028 | Pin - Metering Lever | Included in Carburetor Kwik Repair Kit. |
| 21 | 530035016 | Screw - Metering Lever Pin | |
| 22 | 530035147 | Circuit Plate Gasket | |
| 23 | 530035042 | Plate-Circuit | |
| 24 | 530035137 | Screw-Circuit Plate | Included in Carburetor Kwik Repair Kit. |
| 25 | 530035151 | Gasket-Metering Diaphragm | |
| 26 | 530035014 | Diaphragm-Metering | |
| 27 | 530035153 | Screw - Assembly - Metering Cover & Throttle Shaft Clip | |
| 28 | 530035149 | Cover - Metering Diaphragm | |
| 29 | 530035144 | Kit Carb - Kwik Repair Kit | WA-79 |
| 29 | 530035185 | Carb. Gasket/Diaphragm Kit | WA-149 |
| 30 | 530035145 | Kit Carb - Gasket/Diaphragm | WA-79 |

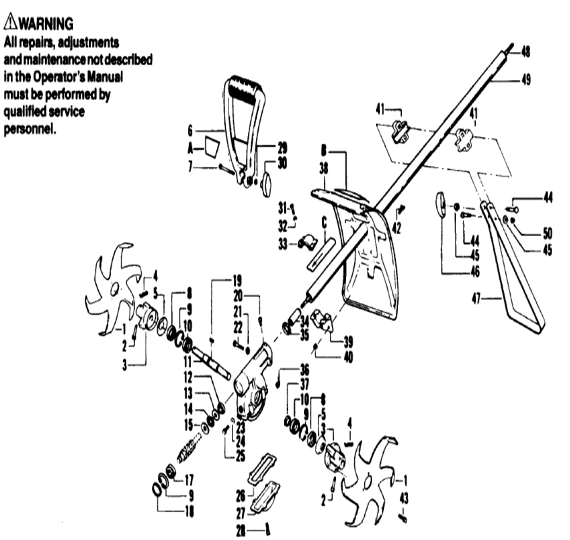

Weedeater 5500 Parts
| # | Part # | Weedeater 5500 Part Name | Note |
|---|---|---|---|
| 1 | 530092237 | Tine | |
| 2 | 530092286 | Pin - Tine | |
| 3 | 530092285 | Screw Kaaz # | |
| C | 920092285 | Screw Kaaz # | |
| 4 | 530092287 | Clip - Tine Shaft | |
| 5 | 530093136 | Shield - Grass | |
| 7 | 530340228 | Bolt | |
| 8 | 530092284 | Oil Seal - Tine Shaft | |
| 9 | 530092291 | Retaining Ring | |
| 10 | 530092282 | Bearing - Tine Shaft | |
| 11 | 530092279 | Shaft - Tine | |
| 12 | 530092296 | Bearing - Worm Gear - Upper | |
| 13 | 530092295 | Thrust Collar - Worm Gear | |
| 14 | 530092294 | Bearing - Worm Gear, Needle | |
| 15 | 530347987 | Washer | |
| 17 | 530092292 | Bearing - Worn Gear, Lower | |
| 18 | 530092289 | Plug - Worm Gear | |
| 19 | 530092281 | Key - Tine Shaft | |
| 20 | 530092309 | Bolt - Gear Housing/Shaft - 6 x 12mm | |
| 21 | 530092278 | Lockwasher 1/4 - Pinch Clamp | |
| 22 | 530092277 | Bolt - Gear Housing | |
| 23 | 530092267 | Gear Box Ass'y | Incl. 2-5, 8-28, 34-37, and Gears |
| 24 | 530092275 | Washer - Grease Plug | |
| 25 | 530092274 | Bolt - Grease Plug | |
| 26 | 530092272 | Gasket - Gear Housing | |
| 27 | 530092314 | Gear Housing Cover | |
| 28 | 530092273 | Screw - Gear Housing - 5 x 14mm | |
| 29 | 530015149 | Washer-Barclamp Screw | |
| 30 | 530092059 | Knob - 1/4 - 20" - Model 2610 | |
| 31 | 530092302 | Screw - Bracket/Shaft - 5 x 14mm | |
| 32 | 530094449 | Washer - Bracket/Shaft - 5mm | |
| 33 | 530092301 | Upper Bracket | |
| 34 | 530092298 | Cplg P142-115-2 | |
| C | 920092298 | Screw Kaaz # | |
| 35 | 530092297 | Oil - Seal | |
| 36 | 530092308 | Spacer 5/16 - Fiber - Pinch Clamp | |
| 37 | 530092288 | Spacer - Tine Shaft | |
| 38 | 530092271 | Hood | |
| 39 | 530092299 | Lower Bracket - 5mm | |
| 40 | 530092307 | Nut - Bracket / Hood | |
| 41 | 530093874 | Clamp - Drag Stake | |
| 42 | 530092304 | Screw w/Washers - Bracket / Hood 5 x 14mm | |
| 43 | 530092309 | Bolt - Gear Housing/Shaft - 6 x 12mm | |
| 44 | 530015567 | Bolt - Clamp -#5/16 - 18 x 2" | |
| 45 | 530001717 | Coupling Washer | |
| 46 | 530091339 | Knob | |
| 47 | 530093873 | Drag Stake | |
| 48 | 530092317 | Drive Shaft | |
| 49 | 530093135 | Drive Shaft Housing Assembly | |
| 50 | 530015111 | Nut - Jam -#5/16 - 18 | |
| CA | 530026225 | Decal-"D" Handle | |
| CB | 530025324 | Decal - Hood | |
| CC | 530026230 | Decal - Hood Location | |
| C | 530060624 | Carton | |
| C | 530066064 | Operator's Manual Model 5500 |

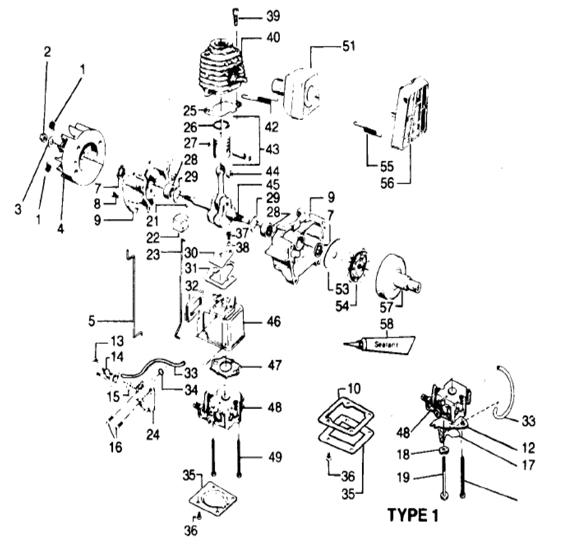

Weedeater 5500 Engine Parts
| # | Part # | Weedeater 5500 Engine Part Name | Note |
|---|---|---|---|
| 1 | 530023817 | Starter Dog Spring | |
| 2 | 530626605 | Flywheel Nut | |
| 3 | 530015127 | Flywheel Washer | |
| 4 | 530039114 | Flywheel Assembly | |
| 7 | 530019059 | Crankcase Seal | |
| 8 | 530015369 | Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger | |
| 9 | 530010757 | Crankcase Assembly | Incl. 7, 28 & Qty. 4 of #8 |
| 10 | 530019112 | Gasket - Carburetor Case Cover | |
| 13 | 530015235 | Screw | |
| 14 | 530010677 | Accumulator Cap Ass'y. | |
| 15 | 530019128 | O-Ring - Accumulator Chamber | |
| 16 | 530015565 | Screw | |
| 17 | 530024558 | Choke Shutter | |
| 18 | 530015254 | Wave Washer | |
| 19 | 530015404 | Screw - 10 - 24 X 2-1/8" - Fil. Hd. - Carburetor Shoulder | |
| 21 | 530015126 | Flywheel Key | |
| 22 | 530023373 | Throttle Wire Boot | |
| 22 | 530023373 | Throttle Wire Boot | |
| 23 | 530024902 | Throttle Wire | |
| 23 | 530026177 | Throttle Wire | |
| 24 | 530010651 | Accumulator Ass'y. | Incl. 14, 15 & 34 |
| 25 | 530069219 | Engine Gasket Kit | |
| 26 | 530024302 | Ring - Piston | |
| 27 | 530015162 | Wrist Pin Retainer | |
| 28 | 530032029 | Crankshaft Bearing | |
| 29 | 530015351 | Washer | |
| 30 | 530024438 | Reed Valve | |
| 31 | 530019108 | Carburetor Case to Crankcase Gasket | |
| 32 | 530019105 | Carburetor Case Seal | |
| 33 | 530069571 | Return Line | |
| 33 | 530021055 | Line-Fuel (Carburet | |
| 34 | 530019131 | O-Ring (Orifice) | |
| 35 | 530026029 | Cover-Carburetor Ca | |
| 36 | 530015235 | Screw | |
| 37 | 530015241 | Screw | |
| 38 | 530023367 | Washer | |
| 39 | 530015239 | Screw | |
| 40 | 530012247 | Cylinder | |
| 42 | 530036409 | Muffler Attachment Spring | |
| 43 | 530022198 | Piston Assembly | |
| 44 | 530032057 | Bearing - Wrist Pin | |
| 45 | 530026675 | Assy-C'Shaft & Rod | |
| 46 | 530024409 | Plastic Housing | |
| 43 | 530026046 | Case-Carburetor | |
| 47 | 530019157 | Carburetor Gasket | |
| 48 | 530035183 | Carburetor | |
| 49 | 530015379 | Screw - 10 - 24 X 1-7/8" - Fil. Hd. - Carburetor | |
| 49 | 530015566 | Screw-10-24X2 Slott | |
| 53 | 530069196 | Kit - Clutch Washer (3/8" Flat) | |
| 54 | 530069194 | Kit - Clutch Assembly | |
| 55 | 530024932 | Spring - Muffler Guard | |
| 56 | 530024855 | Guard - Muffler | |
| 57 | 530010902 | Assy-Drum & Couplin | |
| 58 | 530030054 | Crankcase Sealant |
| # | Part # | Weedeater 5500 Engine Part Name |
|---|---|---|
| 1 | 530056402 | Handle-Starter |
| 2 | 530069178 | Fan Housing |
| 3 | 530027373 | Handle Cover |
| 4 | 530026032 | Injector Button |
| 5 | 530024371 | Air Filter |
| 6 | 530015123 | Washer |
| 7 | 530024436 | Bumper - Fuel Tank Housing |
| 8 | 530024656 | Handle And Fuel Tank Housing |
| 9 | 530015247 | Screw |
| 11 | 530026679 | Button - Kill Switch |
| 13 | 530015407 | Screw |
| 14 | 530024365 | Trigger - Throttle |
| 16 | 530026035 | Baffle-Air |
| 18 | 530024461 | Trigger Spring |
| 19 | 502271102 | High Tension Lead Assembly |
| D | 530039103 | High Tension Lead Assembly |
| 20 | 530026122 | Spacer |
| 21 | 530015123 | Washer |
| 22 | 530015814 | Screw |
| 23 | 530626605 | Flywheel Nut |
| 24 | 530023817 | Starter Dog Spring |
| 25 | 530015127 | Flywheel Washer |
| 26 | 530039114 | Flywheel Assembly |
| 29 | 530024407 | Spring - Kill Switch |
| 32 | 530024435 | Plug Wire Grommet |
| 33 | 530015816 | Screw |
| 34 | 530024158 | Lead Wire - Switch |
| 35 | 530069181 | Kit - Ignition Module |
| 36 | 530024303 | Knob - Choke |
| 37 | 530010738 | Pump Ass'y. |
| 38 | 530025995 | Tab-45 Degree Electrical |
| 39 | 530039082 | High Tension Lead Wire |
| 40 | 530003934 | Spark Plug Boot |
| 41 | 507475326 | Spark Plug Boot |
| 42 | 530030077 | Spark Plug |
| 44 | 530012096 | Shroud |
| 44 | 530011641 | Screw Collar Style |
| 45 | 530015583 | Screw-10-24 X 1-1/2 |
| 46 | 530093802 | Bolt - Pinch Clamp |
| 47 | 530015369 | Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger |
| 48 | 530091878 | Fuel Filter Assembly |
| 48 | 530095646 | Fuel Pick-up Ass'y. |
| 49 | 530026119 | Check Valve |
| 50 | 530069247 | Kit - Line Carb/Purge |
| 51 | 530025472 | Fuel Line Fitting |
| 52 | 530026178 | Clip - Retainer - Inlet Line |
| 53 | 530026109 | Fuel Filter (Inlet Line) |
| 54 | 530021052 | Fuel Inlet Line |
| 55 | 530014347 | Fuel Cap (w/ retainer) |
| 56 | 530069232 | Rope (3 ft.) |
| DA | 530026512 | Starting Instructions - Decal |
| DA | 530026145 | Decal |
| DB | 530025325 | Decal - Shroud (Right) |
| DC | 530025326 | Decal - Shroud (Left) |
