Weedeater 589

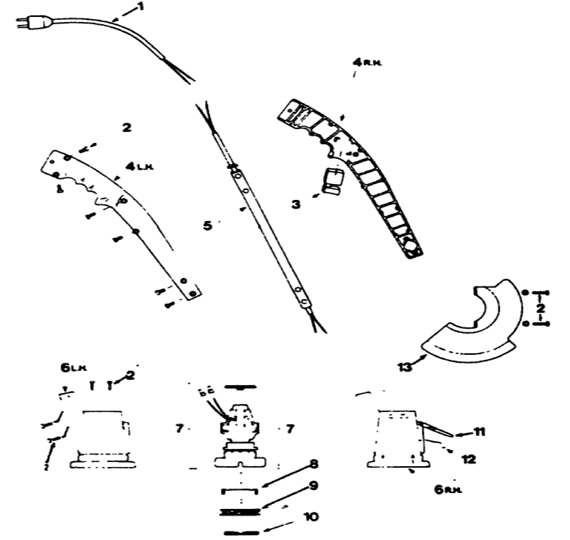

Weedeater 589 Parts
| # | Part # | Weedeater 589 Part Name | Note |
|---|---|---|---|
| 2 | 530092638 | BOLT | |
| 3 | 530092049 | Wing Nut | |
| 4 | 530092598 | SCREW | |
| 5 | 530092699 | TRIGGER HANDLE SET | |
| 6 | 530092641 | TUBE, UPPER | |
| 7 | 530092626 | TUBE FASTENER KIT | |
| 8 | 530092624 | SCREW | |
| 9 | 530092644 | TUBE, LOWER | |
| 10 | 530092694 | MOTOR HOUSING SET | |
| 11 | 530092672 | DRIVE ADAPTOR | |
| 12 | 530092673 | HUB W/LINE SAVERS | |
| 13 | 530092134 | LINE SAVER | |
| 14 | 530340007 | Spring | |
| 15 | 530328929 | Cap-Spring | |
| 16 | 530092069 | Drive Gear Old Style | |
| 17 | 702509 | SPOOL, WOUND | |
| 18 | 530401183 | Button-Black | |
| 19 | 530092133 | Cover | |
| 20 | 530092702 | TAP-N-GO HEAD ASSEMBLY | |
| 21 | 952701522 | LINE LIMITER KIT | |
| 22 | 534450400 | Brush Kit | |
| 23 | 534234502 | POWER CORD PIGTAIL | |
| 25 | 534332500 | Speed Switch | |
| 25 | 530092703 | SWITCH, TOGGLE (For 92705 Harness) | |
| 26 | 530092705 | WIRE, JUMPER | |
| 27 | 530092706 | HARNESS w/RECTIFIER & TOGGLE SWITCH | |
| 28 | 530092656 | MOTOR | |
| 29 | 534226000 | Insulator | |
| 30 | 530092658 | END BELL SET | |
| 31 | 530092659 | WASHER-THRUST, .025" | |
| 31A | 530092661 | WASHER-THRUST, .010" | |
| 32 | 530092662 | ARMATURE | |
| 33 | 530092663 | FIELD ASSEMBLY | |
| 34 | 530092664 | SCREW |
