Weedeater 6510

Weedeater 6510 Carburetor Parts

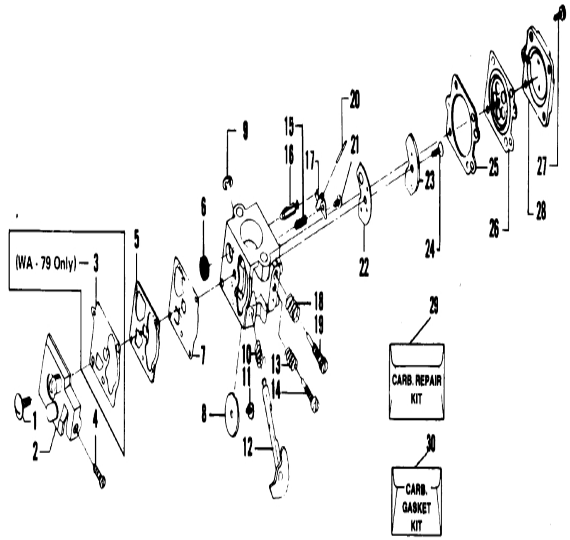

Weedeater 6510 Carburetor

#Part #Weedeater 6510 Carburetor PartsNote
1530035017Screw - Pump Cover
2530035154Pump Cover AssemblyWA-79
2530035191Cover Fuel PumpWA-149
3530035135Diaphragm Fuel PumpWA-79
4530035156Idle Speed Screw
5530035009Gasket-Fuel PumpWA-79
5530035164Gasket-Fuel PumpWA-149
6530035178Screen-Fuel Inlet
7530035152Diaphragm - PumpWA-79
7530035166Diaphragm-Fuel PumpWA-149
8530035133Valve - Throttle
9530035007Ring-Throttle Retainer
10530035138Spring---Throttle Return
11530035015Screw-Throttle Valve
12530035132Shaft Assembly-Throttle
13530035023Idle Needle Spring
14530035141Idle Needle
15530035139Spring-Metering Lever
16530035106Valve-Inlet Needle
18530035036Spring-High Speed Needle
19530035142Hi Speed Needle
20530035028Pin - Metering Lever
21530035016Screw - Metering Lever Pin
22530035147Circuit Plate Gasket
24530035137Screw-Circuit Plate
25530035151Gasket-Metering Diaphragm
27530035153Screw - Assembly - Metering Cover & Throttle Shaft Clip
28530035149Cover - Metering Diaphragm
A530035144Kit Carb - Kwik Repair KitWA-79
A530035185Carb. Gasket/Diaphragm KitWA-149
530035145Kit Carb - Gasket/DiaphragmWA-79

Weedeater 6510 Engine Parts

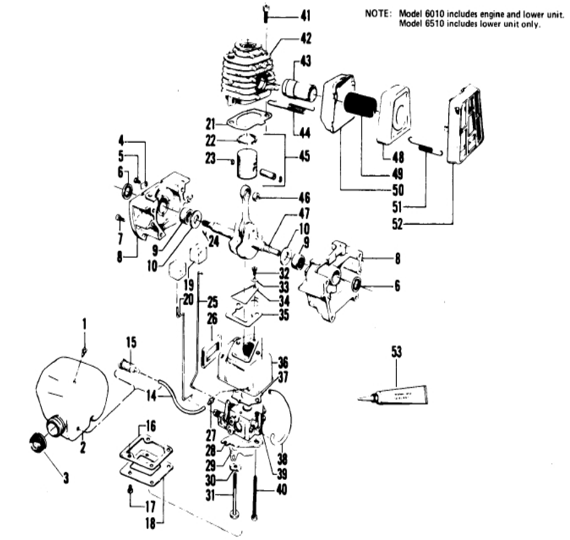

Weedeater 6510 Engine

#Part #Weedeater 6510 Engine PartsNote
1530026119Check Valve
2530010776Fuel Tank AssemblyIncl. # 1, 3, 14 & 15
3530014347Fuel Cap (w/ retainer)
4530023661Clamp - Module Lead
6530019059Crankcase Seal
7530015369Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger
8530010316Crankcase AssemblyIncl. # 6 & 9
9530032029Crankshaft Bearing
15530091878Fuel Filter Assembly
16530019112Gasket - Carburetor Case Cover
19530023373Throttle Wire Boot
21530069219Engine Gasket Kit
22530024929Model 1800, Piston Ring
23530015162Wrist Pin Retainer
24530015126Flywheel Key
25530024902Throttle Wire
26530019105Carburetor Case Seal
27530025472Fuel Line Fitting
29530024558Choke Shutter
30530015254Wave Washer
31530015404Screw - 10 - 24 X 2-1/8" - Fil. Hd. - Carburetor Shoulder
34530024438Reed Valve
35530019108Carburetor Case to Crankcase Gasket
36530024409Plastic Housing
37530019157Carburetor Gasket
38530069571Return Line
40530015379Screw - 10 - 24 X 1-7/8" - Fil. Hd. - Carburetor
42530012191Cylinder (28.0CC)
44530036409Muffler Attachment Spring
46530032057Bearing - Wrist Pin
47530026675Assy-C'Shaft & Rod
48530024361Cover - Muffler
49530024364Screen - Spark Arresting
50530024362Body - Muffler
51530024932Spring - Muffler Guard
52530024855Guard - Muffler
53530030054Crankcase Sealant

Weedeater 6510 Parts

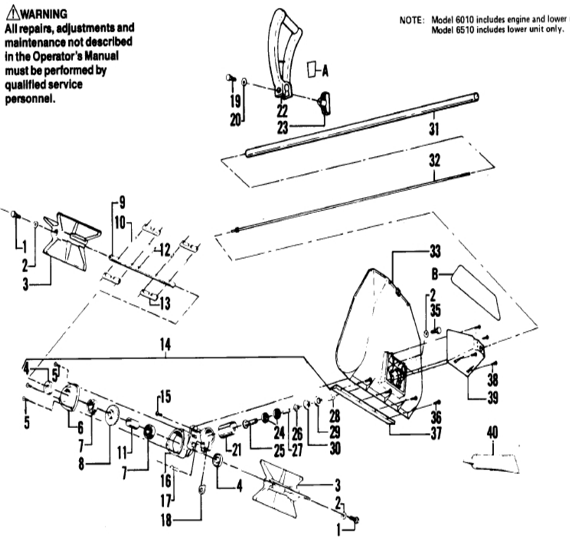

Weedeater 6510 Part 1

#Part #Weedeater 657 HeadNote
1530092809Head Assembly
3952701510Accy-W/E (4Spool/.0
4530092805Spring, Spool Retainer
5530092806Lower Cover
6530092808Socket Head Cap Screw 3/8 NC x 1-1/4
7530092803Arbor Post
8530340010Retainer, Line
10952701598Accy-W/E 10" Brush
11952701509Accy-W/E 11"

Weedeater 6510 Part 2
#Part #Weedeater 657 PartsNote
1530092741Motor Leg
2530092742Muffler Guard
3530092743Plate Adaptor Engine
4530091458Spring Washer
5530092745Screw, Socket Hd. #5/16 - 18 x 3/4"
6530092816Clutch Assembly
7530093131Clutch Kit
8530093131Clutch Kit
9530092817Rotor Hub
10530092767Drum & Arbor
11530092768Retaining Ring
13530092771Housing, Clutch w/Bearing/Get. Ring
14530092794Screw, Soc. Hd. #5/16 - 18 x 1"
15530092775Screw, Hex Hd #1/4 - 20 x 2"
16530092773Washer, Drive Shaft, Upper & Lower
17530092774Coupling Squared
19530094501Housing-Drive Shaft
20530094504Shield Kit
21530092774Coupling Squared
22530092773Washer, Drive Shaft, Upper & Lower
23530094503Lower Housing
26530092768Retaining Ring
27530092799Arbor 5180-00
28530092801Cup Washer, Arbor, Keyed
29530092794Screw, Soc. Hd. #5/16 - 18 x 1"
31530092795Screw #1/4 - 20 x 1/2"
34530092797Sup Brace 5190-00
35530093137Washer, Lower Arbor
36530092773Washer, Drive Shaft, Upper & Lower
37530093139Nut 5123-00
38110092781Gasket-Garburetor K
B530092781Swivel Hook Wire
39530092782Collar, Swivel
40530092821Screw 5170-00
43530094506Nut-10-32 (657)
48530092764Woodruff Key
49530001615Locknut - Bumper Spike Mounting (1/4 - 20)
50530092792Pilot Washer
51530092777Grommet - Drive Shaft
BA530092749Decal - Fuel Mix
BB530092791Decal - Choke/Eye Warning
